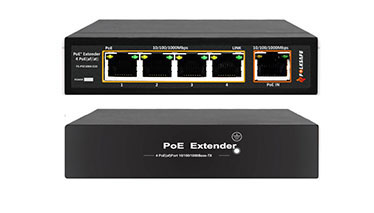

FS-PSE1004-G10

PoE Extender

Overview | Parameters | Technical Specifications | Applications

Model: FS-PSE1004-G10

4-Port PoE Extender

One PoE Input port, four PoE Output ports
Supports PoE input power up to 70 watts
Support PoE output power up to 60 watts
Supplies a maximum of 15-watt or 30-watt for each port within total 60-watt PoE budget
Bandwidth: 10/100/1000Mbps
Input voltage: 37-57V
Complies with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/100BASE-FX, IEEE802.3az, IEEE802.3af/at
Easy to install and operate on walls or on the desktops
