4-Port PoE Extender

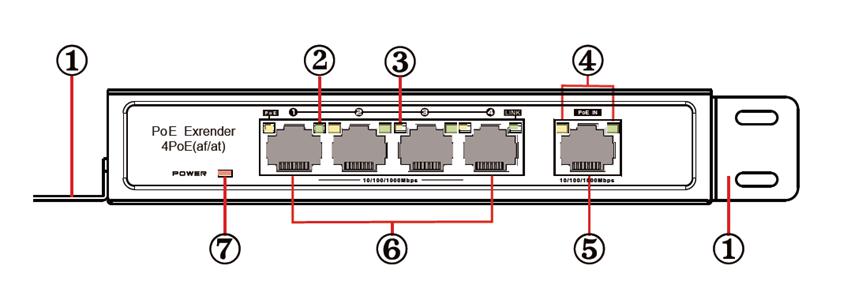

1 Rack-mounting ears: Cabinets for product installation or Wall installation
2 Switch Port Indicator: Green, Lights when the port is connected, Flashes when is transferring data, OFF: No link
3 PoE Indicator: Yellow, Light on when PD is powered, OFF: PD device is not detected or powered
4 Uplink Indicator: Green, Lights when the port is connected, Flashes when is transferring data, OFF: No link Yellow, Lights when PSE device is powered
5 PoE input port: For PoE input and Transfers data to other devices
6 PoE output port: Supplies power to PD device and transfers the data
7 Power Indicator: Red, Light ON: with power, Light OFF: No power

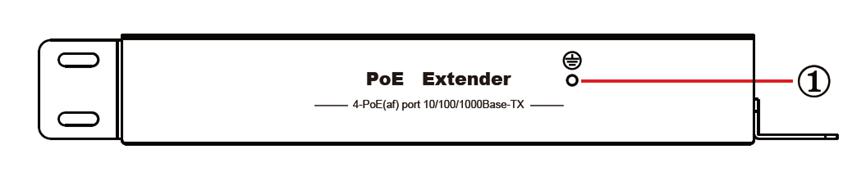

1 Ground connection: For the release of the surge and static electricity
FS-PSE1004-G10 PoE Extender can extend the range of power and data an additional 100m over network cable. This PoE extender can connect PSE devices which support IEEE802.3af/at (such as PoE Switch) and supply power to PD devices (support IEEE802.3af) via network cable, to extend PoE and Ethernet signal to 100m without requiring an extra power supply.
This product can obtain a maximum of 70-watt PoE power from PoE input port and supplies a maximum of 15-watt or 30-watt for each port within total 60-watt PoE budget for output, with IEEE802.3af/at. This device can help get longer transmission distance in network video surveillance and office wiring.
Note:
1 All specifications are subject to change without notice.
2 As transmission distance will vary on the quality of the network cable, so you are suggested to use standard cat5e/6 cable for the longest distance needed.
1. Cat5e, Cat6, or Cat7 cable
2. RJ-45 connectors
3. Crimping tool
4. Wire stripper or Knife
1) We recommend stripping at least half an inch of the cable to expose the inner wires.
2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.
3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.
4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.
5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.
6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.
7) Make sure to test the cables before installing them once both ends of the cable have been completed.
Note:
1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.
Installation:
1. Before installation, please check the following equipment and accessories, if there is any missing, please contact with your supplier.
1) 1 pc of FS-PSE1004-G10
2) 1 pc of user manual
2. Please install as below steps:
1) Before installation, please turn off the power of all signal sources and the monitor in case of the damage to transmission device.

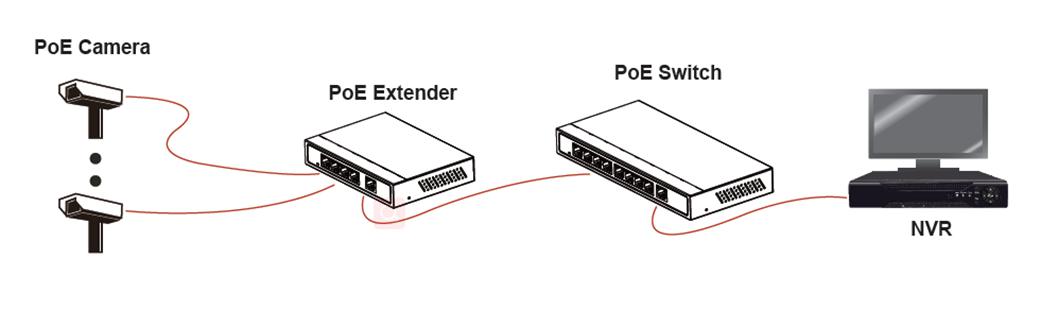

2) Using ONE network cable to connect with PoE input port and switch, as well as powered devices such as IP cameras via the other port.
3) Check whether the installation is correct or the device is damaged. Before power on, make sure that all connections are reliable.
4) Confirm all network devices are powered and can work normally.
Troubleshooting:
When the device has encountered troubles, it can be solved by the methods below:
1) Make sure the device is installed correctly referring to the requirements;
2) Make sure RJ45 cable is good contacted without open circuit; the cable design complies with EIA/TIA 568A or 568B international standards.
3) Each PoE port can provide max 15W to PoE devices, so please don’t connect with the PoE device which is more than 15W.
4) Replace the broken device with a normal working FS-PSE1004-G10 to check if the device is damaged.
5) If all the above methods still don’t work, please contact with the manufacturer directly.
|
Model |
FS-PSE1004-G10 |
|
Product Name |
4-Port PoE Extender |
|
Port |
One RJ45 port for PoE input, four RJ45 ports for PoE output |
|
PoE Power Supply Mode |
Powered via PoE input port, support Mid-Span and End-Span |
|
Transmission Media |
standard cat5e/6 or above |
|
Input Wattage |
Supports PoE input power up to 70 watts |
|
PoE Power Output |
Max. 15 watts or 30 watts for each PoE output port within total 60-watt PoE budget |
|
Bandwidth |
10/100/1000Mbps |
|
Standard Compliance |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/100BASE-FX, IEEE802.3az, IEEE802.3af/at, IEEE802.3ab |
|
Working Status |
“PoE-in-use” LED indicator, “Link/act” LED indicator |
|
Dimensions (L*W*H) |
116mmx78mmx26mm |
|
Weight |
425g |
|
Environment |
Working Temperature: 0° ~ 45°C |
|
|
Storage Temperature: -40° ~ 85°C |
|
|
Relative Humidity: 5% ~ 95% (non-condensing) |
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
