4-Port 10/100Mbps IEEE 802.3af/at Web Smart Managed PoE Switch (End-Span PSE)

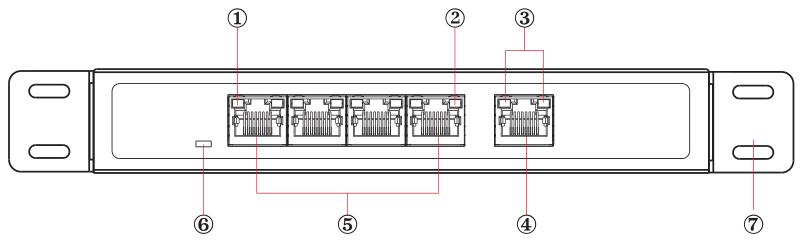

1 PoE LED: Yellow Light on: when device is normal powered Light off: when device is not detected or powered
2 PoE Network Port Indicator: green light, keeps on when well connected; Blinking while data transferring
3 Uplink Indicator: Green LED on: link up off: link down blinks: data transferring Yellow LED on: link speed is 100Mbps off: link speed is 10Mbps
4 Uplink Port: Transfer data from PoE ports to other devices (NVR/Switch/ADSL)
5 Downlink Port: Transfer data from other IP devices to the switch
6 Power LED: Red Light on: with power Light off: no power
7 Rack-mounting ears: Cabinets for product installation or Wall installation

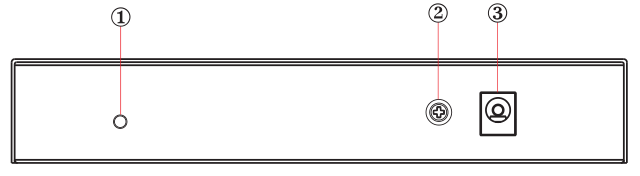

1 Reset Button: Press the reset button to turn on indicator and the device restarts.
2 Ground Connection
3 Power Input: DC48~56V
1. Cat5e, Cat6, or Cat7 cable
2. RJ-45 connectors
3. Crimping tool
4. Wire stripper or Knife
1) We recommend stripping at least half an inch of the cable to expose the inner wires.
2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.
3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.
4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.
5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.
6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.
7) Make sure to test the cables before installing them once both ends of the cable have been completed.
Note:
1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.
2. Up to three units can be cascaded.
Package Contents
1) FS-S2004EP-E: 1pc 2) 52VDC/1.25A Power adapter: 1pc
3) Screw: 10pcs 4) Manual: 1pc
5) Mounting-ears: 2pcs 6) Rubber feet: 4pcs

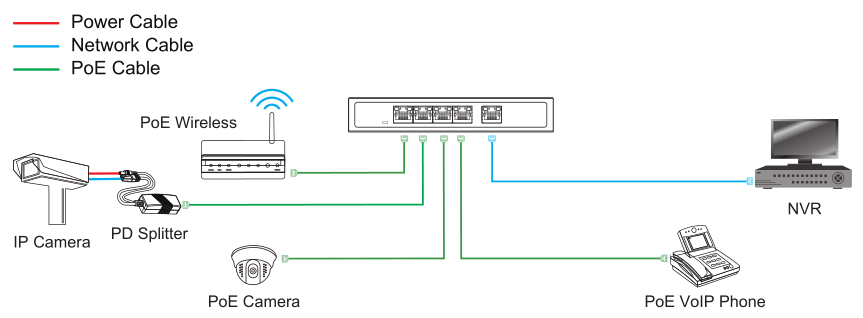

Step 1: Begin with all input/output devices turned off and power cables are removed.
Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.
Step 3: Connect Uplink port of PoE switches with RJ-45 port of NVR or computer or other devices over standard Cat 5e/6 cables.
Step 4: Connect 52VDC/1.25A Power adapter with PoE switches.
Step 5: Make sure above connection is properly finished, then turn on the power.
|
Model |
FS-S2004EP-E |
|
|
Product Name |
4-Port 10/100Mbps IEEE 802.3af/at Web Smart Managed PoE Switch |
|
|
Power Supply |
Power Supply Mode |
Power adapter |
|
Voltage Range |
DC48V~56V |
|
|
Power Consumption |
The device <5W PoE power supply ≤60W |
|
|
Network Port Parameter |
Network Port |
1~4 Ethernet Port: 10/100Mbps 1 x 10/100Mbps uplink RJ-45 port |
|
Transmission Distance |
Downlink Port: 100m Uplink RJ45 Port: 100m |
|
|
Transmission Medium |
Downlink Port: Cat5e/6 standard cable Uplink Port: Cat5e/6 standard cable |
|
|
PoE Standards |
IEEE802.3af/at standards |
|
|
PoE Power Supply Mode |
End-span method |
|
|
PoE Power Supply Wattage |
Each port ≤30W Whole device≤60W |
|
|
Network Switch Specification |
Network Standards |
IEEE802.3, IEEE802.3u, IEEE802.3az |
|
Swap Mode |
Store-and- forward |
|
|
Data-Caching Mechanism |
448K |
|
|
MAC Address List |
1K |
|
|
Backplane Bandwidth |
1Gbps |
|
|
Forwarding Capacity |
0.74Mpps |
|
|
Indicator/Button |
Power Indicator |
Red LED on: power on |
|
PoE System Indicator |
1 indicator light(green), Flashing frequency: 1s, Steady on indicates abnormal operation |
|
|
Uplink RJ-45 Port Indicator |
Green LED on: link up, off: link down, blinks: data transferring |
|
|
PoE Indicator |
4 PoE indicators (Yellow), on: indicated PoE power normally, off: indicates on power |
|
|
PoE Network Port Indicator |
1~4 port (green light), keeps on when well connected; Blinking while data transferring |
|
|
Reset Indicator |
Green light on when press reset button |
|
|
Reset Button |
Whole machine will restart while press the button |
|
|
Protection Level |
Surge Protection |
6KV (common mode),10/700us IEC61000-4-5 2KV (differential mode),10/700us IEC610000-4-5 |
|
Electrostatic Protection |
Contact Discharge: ±4KV Air Discharge: ±6KV Standard: IEC61000-4-2 |
|
|
Reliability |
Mean time between failures (MTBF) |
＞50000h |
|
Mechanical |
Dimensions (L*W*H) |
116mmx78mmx26mm |
|
Housing |
Galvanized |
|
|
Body Color |
Black |
|
|
Net Weight |
≤450g |
|
|
Environmental |
Operating Temperature |
0℃~55℃ |
|
Storage Temperature |
-40℃~70℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
