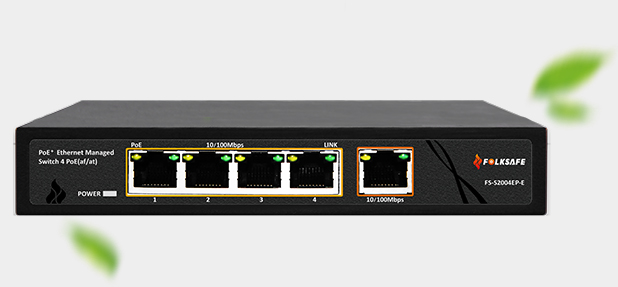

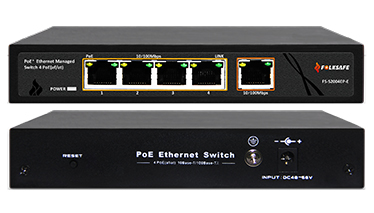

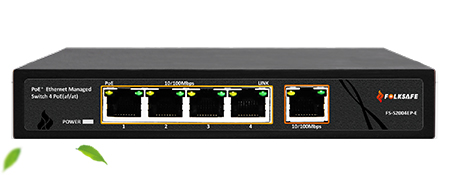

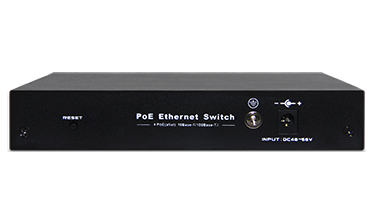

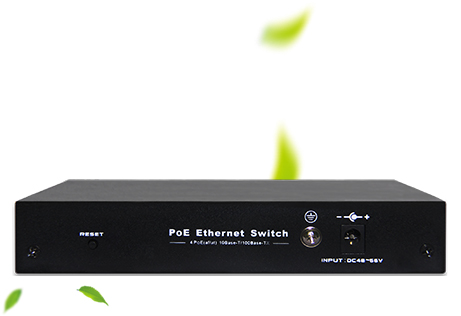

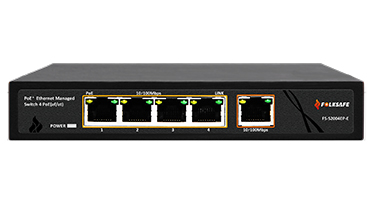

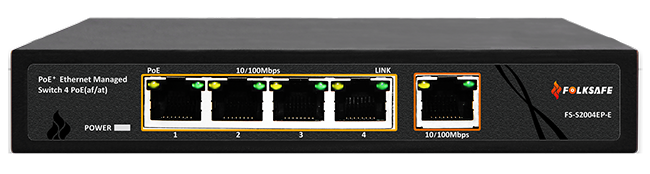

Model: FS-S2004EP-E

4-Port 10/100Mbps IEEE 802.3af/at Web Smart Managed PoE Switch (End-Span PSE)


  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • Support L2 switching function, including 802.1QVLAN, port mirroring, port isolation, IGMP Snooping function, LLDP, PoE+ management and ARP detection
  • Support WEB, TELNET & SNMP management
  • Support STP (802.1D) and RSTP (802.1w)
  • 4-Port support 48V-56VDC power to PoE powered devices
  • Provide 15.4W or 30W power to powered devices
  • Extra 1-port 10/100Mbps RJ-45
  • 60-watts PoE budget
  • PoE data & power transmission distance up to 100 meters
  • Excellent anti-thunder, anti-static and anti-interference ability
  • Surge Protection: 6KV
  • Restart function helps master IC reset wholly
  • Easy and convenient to use, plug & play, no need to configure
  • Galvanized housing for stable and durable working life
RTM function make the camera work smoothly


Real Time Monitoring(RTM) function, detect and reboot the device when the camera frozen.



Multiple functions to better set the switch


Support L2 switching function, including 802.1QVLAN, port mirroring, port isolation, IGMP Snooping function, LLDP, PoE+ management and ARP detection. Login to the web interface, you can set VLAN and extend function by yourself.


Save your cost and time


With data and power over Ethernet formed one unit, the FS-S2004EP-E reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords.


Office Network

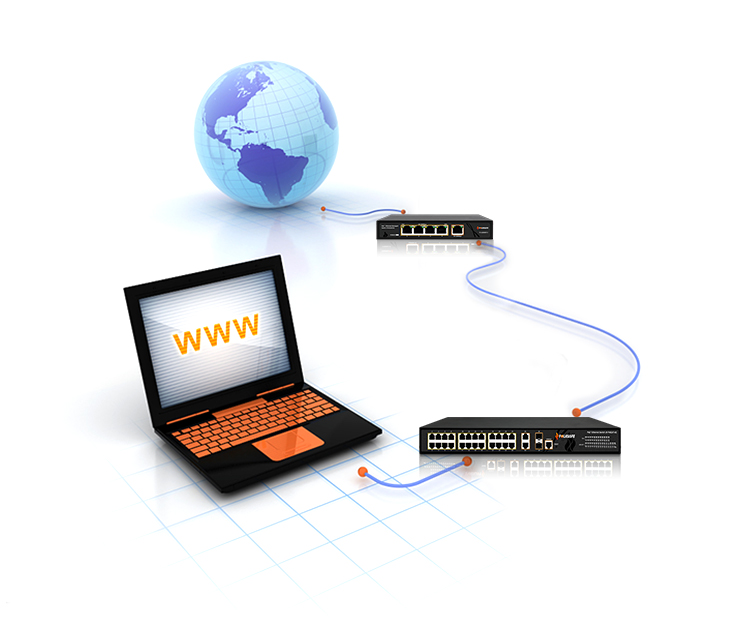

Cascade connection to better control
your surveillance system

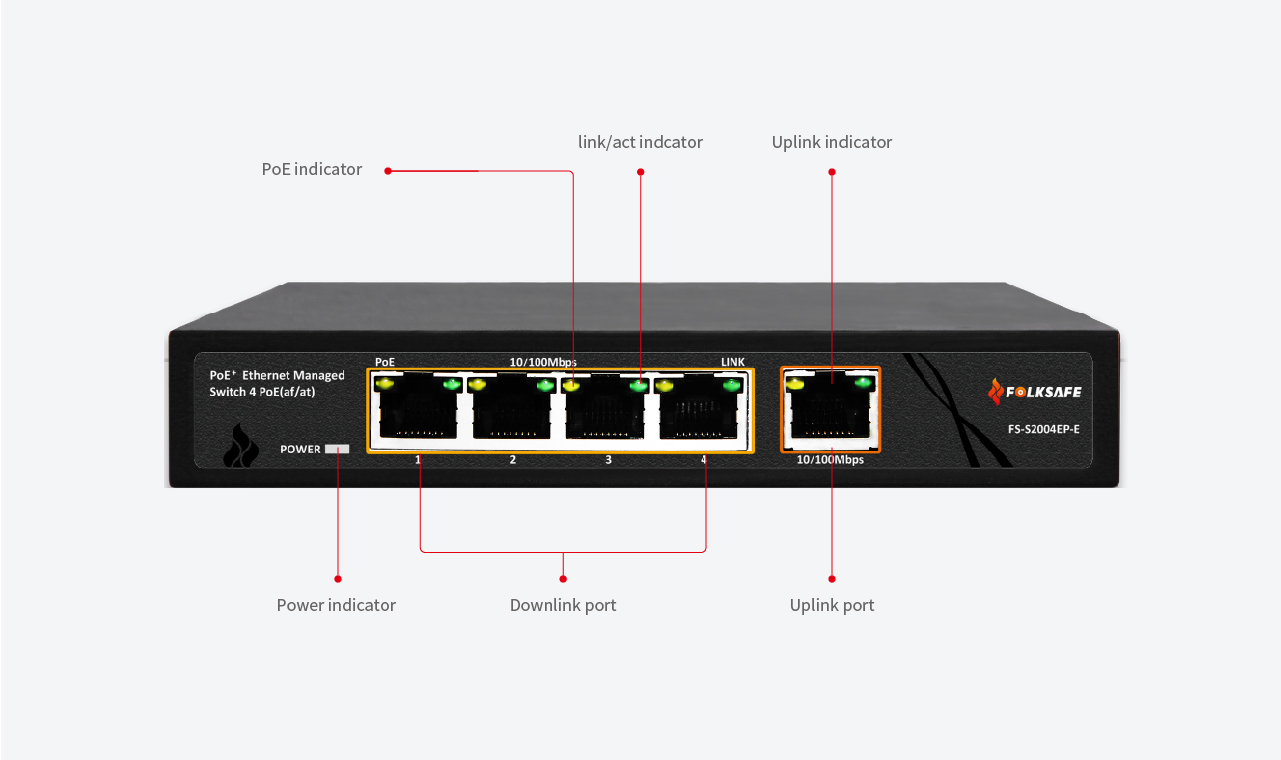

It provides both 802.3af/at PoE functions along with 4 x 10/100Base-TX ports featuring 15.4-watts 802.3af/30-watts 802.3at PoE in RJ-45 interfaces and extra 1 x 10/100Mbps UPLINK RJ-45 port to keep a cascade connection with another switch or NVR as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.




More features, more choices


Easy and convenient to use, plug & play, no need to configure.
