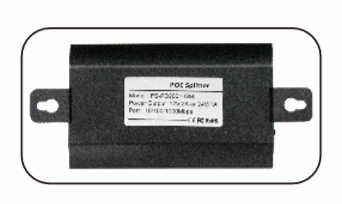

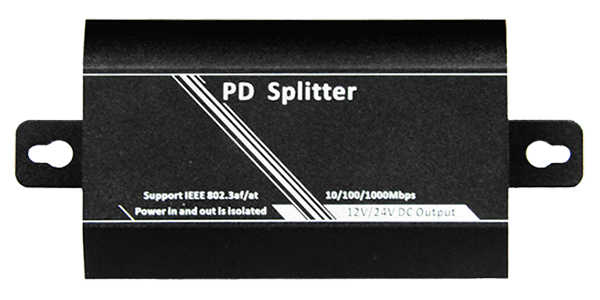

Model: FS-PD2001-GM

Single channel isolated PoE Splitter

  • Bandwidth: 10/100M/1000M
  • Input Voltage: 37-57V
  • Input port: Supports Mid-Span (No.4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections
  • Two switchable output Voltage: 12V/24V
  • Output: 12VDC, 2.0A (Max); 24VDC, 1.0A
  • PoE Standard: Supports IEEE802.3af/at
  • Isolation protection: Using the transformer for isolation design, more stable, more secure
  • Protection function: Overheating protection, Short circuit protection, overvoltage and overload protection
