Model: FS-S1008EP-2G

8-Port 10/100Mbps IEEE 802.3af/at PoE Switch (End-Span PSE)

  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • 8-Port support 48V-56VDC power to PoE powered devices
  • Provide 15.4W or 30W power to powered devices
  • 120-watts PoE budget
  • External 53VDC/2.5A power adapter included
  • Extra 2-Port 10/100/1000Mbps UPLINK RJ-45
  • PoE data & power transmission distance up to 100meters
  • Port based VLAN for Enhancing Security
  • Transmission distance up to 250meters while VLAN indicator turns on
  • Backplane Bandwidth:5.6Gbps
  • Restart function helps master IC reset wholly
  • Excellent anti-thunder, anti-static and anti-interference ability
  • Surge Protection: 6KV
  • Easy and convenient to use, plug & play, no need to configure
  • Galvanized housing for stable and durable working life

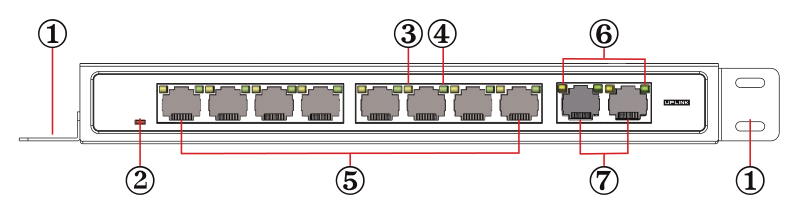

Front & Rear Panel

1 Rack-mounting ears: Cabinets for product installation or Wall installation

2 Power Indicator: Red Light on: with power Light off: no power

3 PoE Indicator: Yellow Light on: when device is powered Light off: when device is not detected or powered

4 Link/ Act Indicator: Green Light on: link up off: link down blinks: data transferring

5 Downlink Port: Transfer data from other IP devices to the switch

6 Uplink Indicator: Green    LED on: link up    off: link down    blinks: data transferring      Yellow    LED on: link speed is 1000Mbps      off: link speed is 10/100Mbps

7 Uplink Port: Transfer data from PoE ports to other devices (NVR/Switch/ADSL)

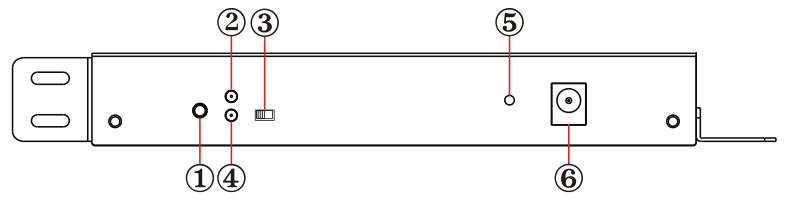

Rear Panel

1 Reset Button: Press the reset button to turn on indicator and the device restarts.

2 Reset Button Indicator: Green

3 VLAN Button: Turn on VLAN button: indicator on and VLAN function starts Turn off VLAN button: indicator off and VLAN function stops

4 VLAN Indicator: Green

5 Ground Connection

6 Input: DC 48~56V

VLAN Introduction

At present, applications of Ethernet switch are very wide. To satisfy the needs of various customers, it is urgent for network services to solve the problems of broadcast domains, bandwidth and security, so a new kind of technology of VLAN emerged.

Each DOWNLINK RJ-45 port and UPLINK RJ-45 port form a separate workstation respectively. In the same VLAN workstation, regardless of which switch they are actually connected to, the communication between them is as if they were on a separate switch. Broadcasts in the same VLAN can only be heard by members of the VLAN, but not in other VLANs, which can control the generation of unwanted broadcast storms. At the same time, if there is no routing, different VLANs cannot communicate with each other, which increases the security of different departments in the enterprise network.

When the VLAN mode is enabled, the data cannot be forwarded among DOWNLINK RJ-45 ports, but DOWNLINK ports and UPLINK RJ-45 port can communicate with each other. The bandwidth of DOWNLINK RJ-45 port is forced to 10Mbps mode to adapt to long distance transmission of max 250 meters. The bandwidth of UPLINK RJ-45 port is 1000Mbps, which keeps a cascade connection with another switch or NVR.


1. After you turned on VLAN button, please press reset button or reboot the device, then VLAN mode is enabled.

2. The maximum extended distance up to 250 meters.   The actual extended distance will vary according to the quality of the cable, specific camera and on-site environment.

RJ 45 Define
How to make a network cable
To create a network cable, you will first need the equipment listed below.

1. Cat5e, Cat6, or Cat7 cable

2. RJ-45 connectors

3. Crimping tool

4. Wire stripper or Knife

The wire sequence of RJ45 connector must comply with international standard of EIA/TIA 568A or EIA/TIA 568B.

1) We recommend stripping at least half an inch of the cable to expose the inner wires.

2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.

3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.

4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.

5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.

6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.

7) Make sure to test the cables before installing them once both ends of the cable have been completed.


1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.

2. Up to three units can be cascaded.

Quick Setup Guide

Package Contents

1) FS-S1008EP-2G: 1pc           2) 53VDC/2.5A Power adapter: 1pc

3) Screws: 5pcs                4) Rubber feet: 4pcs

5) Mounting-ears: 2pcs          6) Manual: 1pc

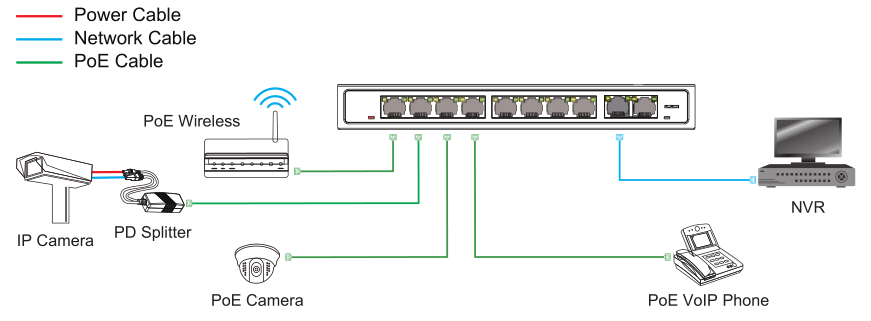

Step 1: Begin with all input/output devices turned off and power cables are removed.

Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.

Step 3: Connect Uplink port of PoE switches with RJ-45 port of NVR or computer or other devices over standard Cat 5e/6 cables.

Step 4: Connect 53VDC/2.5A power adaptor with PoE switches.

Step 5: Make sure above connection is properly finished, then turn on the power.

Technical Specifications



Product Name

8-Port 10/100Mbps IEEE 802.3af/at PoE Switch (End-Span PSE)

Power Supply

Power Supply Mode

Power Adaptor

Voltage Range


Power Consumption

The device <5W     PoE power supply120W

Network Port Parameter

Network Port

Ethernet Downlink RJ-45 Port: 8*10/100Mbps   Uplink RJ-45 Port: 2*10/100/1000Mbps

Transmission Distance

1~8 Ethernet Downlink RJ-45 Port: 100m   Mandatory 10 Mbps reach up to 250m   Uplink RJ-45 Port: 100m

Transmission Medium

1~8 Ethernet Downlink RJ-45 Port: Cat5e/6 standard cable   Uplink RJ-45 Port: Cat5e/6 standard cable

PoE Standards


PoE Power Supply Mode

End-span method

PoE Power Supply Wattage

Each port ≤30W   Whole device≤120W

Network Switch Specification

Network Standards

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az

Swap Mode

Store-and- forward

Data-Caching Mechanism


MAC Address List


Backplane Bandwidth


Forwarding Capacity




Power Indicator

Red LED on: power on

Fast Ethernet Uplink Port

Green LED on: link up, off: link down, blinks: data transferring   Yellow LED on: link speed is 1000Mbps, off: link speed is 10/100Mbps

PoE Indicator

8 PoE indicators (Yellow)

PoE Network Port Indicator

1~8 port indicators blink while data transferring

Reset Button

Press the reset button to turn on indicator (green) and the device restarts.

VLAN Button

Turn on VLAN button: indicator on and VLAN function restarts   Turn off VLAN button: indicator off and VLAN function stops

Protection Level

Surge Protection

6KV (common mode),10/700us IEC61000-4-5   2KV (differential mode),10/700us IEC610000-4-5

Electrostatic Protection

Contact Discharge: ±4KV   Air Discharge: ±6KV   Standard: IEC61000-4-2


Mean time between failures (MTBF)



Dimensions (L*W*H)




Body Color


Net Weight




Operating Temperature


Storage Temperature


Relative Humidity

0~95% (non-condensing)


• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
