16-CH 12VDC Power Supply HD Video Receiver Hub

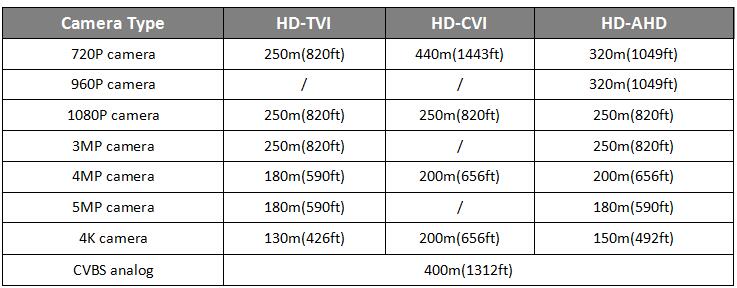

1 The actual transmission distance will vary according to the quality of the cable, specific camera, and on-site environment.

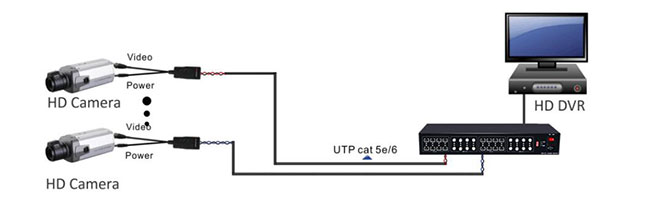

2 Please make sure to install transmitter at camera side and receiver at DVR side to achieve the best quality.
3 If you adjust saturation of DVR, video transmission distance could be farther. HD-CVI 720P: max up to 470m(1541ft).
4 If chromatic aberration occurs, please also adjust saturation, the picture will recover perfectly automatically.
5 The device is not waterproof and not to be used at outdoors.

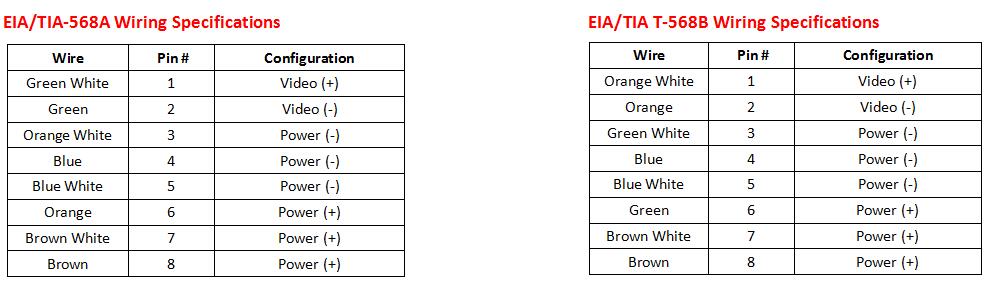

FS-HD4616VPS12 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG. Individually shielded pairs should
be avoided, as they reduce the operating range of the systems drastically. Multi-pair cable (25-pair or more) with an overall shield are acceptable.
Video
signals can coexist in the same wire bundle as telephone, datacom, or low-voltages power circuits. While video may be routed through telephone punch-down
block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair.
For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.
Note:
1. After you turned on VLAN button, please press reset button or reboot the device, then VLAN mode is enabled.
2. The maximum extended distance up to 250 meters. The actual extended distance will vary according to the quality of the cable, specific camera and on-site environment.
|
Model |
FS-HD4616VPS12 |
|
|
Product Name |
16- Channel Power Supply HD Video Receiver Hub |
|
|
Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
|
|
Video |
Video Format |
HD-TVI/CVI/AHD/CVBS |
|
Operating Frequency |
DC to 71MHz |
|
|
Common-mode/Differential-mode rejection |
15KHz to 71MHz 60 dB typ. |
|
|
Impedance |
Coax: Male BNC75Ω unbalanced |
|
|
UTP: RJ45 Jack100Ω balanced |
||
|
Attenuation |
0.5 dB typ. |
|
|
Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
|
Category Type |
2 or better |
|
|
Impedance |
100 ± 20 ohms |
|
|
DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
|
|
Differential Capacitance |
19 pF/ft max (62 pF/m max) |
|
|
Power |
Power Input |
No external power required |
|
Power Transmission |

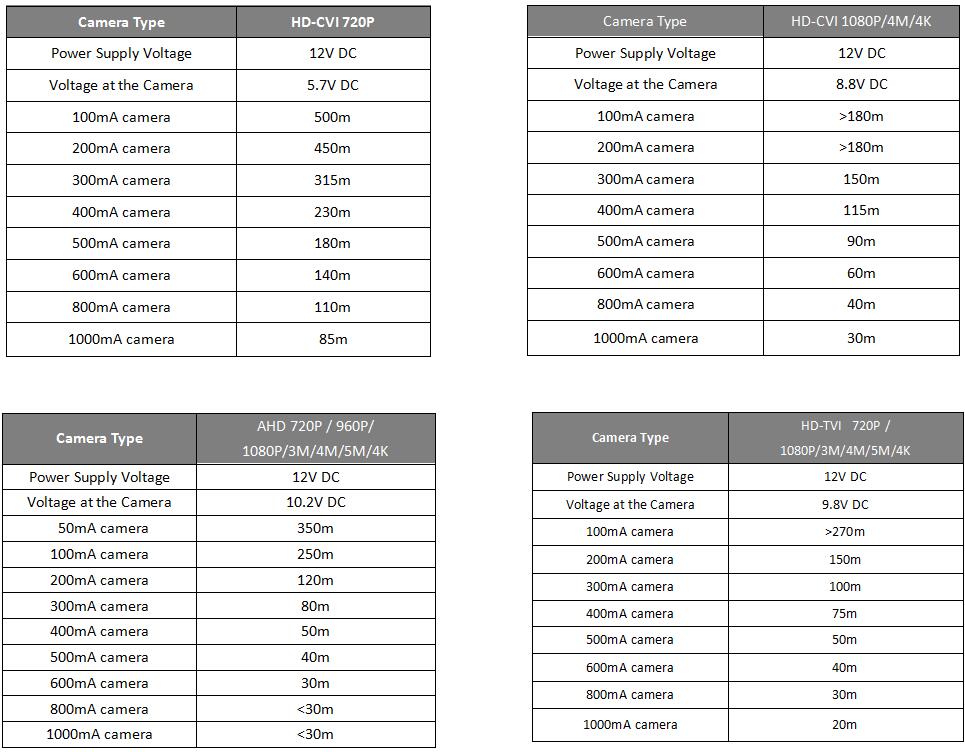

12VDC max up to 328ft /100m over 3pairs of UTP cat5e/6 |
|
|
Power Consumption |
200W |
|
|
Connector |
Video Input |
RJ45 Jack |
|
Video Output |
Female BNC connector |
|
|
Protection |
Surge Protection |
Built-in Transient Voltage Suppressor (TVS) |
|
Antistatic |
YES |
|
|
Mechanical |
Dimensions(L*W*H) |
430*261.2*67mm (BNC connector & mounting bracket excluded) |
|
Housing |
Black galvanized |
|
|
Body Color |
Black |
|
|
Net Weight |
12.5KG |
|
|
Environmental |
Operating Temperature |
-25º ~ 75º C |
|
Relative Humidity |
0~95% (non-condensing) |
|
|
Storage Temperature |
-40º ~ 150º C |
|
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
