How to make a network cable

To create a network cable, you will first need the equipment listed below.

1. Cat5e, Cat6, or Cat7 cable

2. RJ-45 connectors

3. Crimping tool

4. Wire stripper or Knife

The wire sequence of RJ45 connector must comply with international standard of EIA/TIA 568A or EIA/TIA 568B.

1) We recommend stripping at least half an inch of the cable to expose the inner wires.

2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.

3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.

4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.

5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.

6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.

7) Make sure to test the cables before installing them once both ends of the cable have been completed.

1) Remove possible faults with following instructions.

2) Check if devices installed in proper way instructed by the supplier.

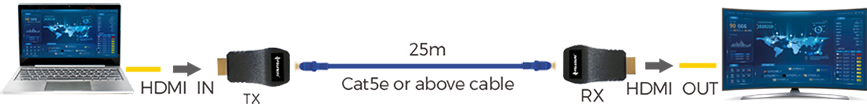

3) Check if HDMl cable well connected and line sequence at sending & receiving unit in correspondence

4) Check if actual transmission distance exceeds Max. distance permitted under this HDMl format.

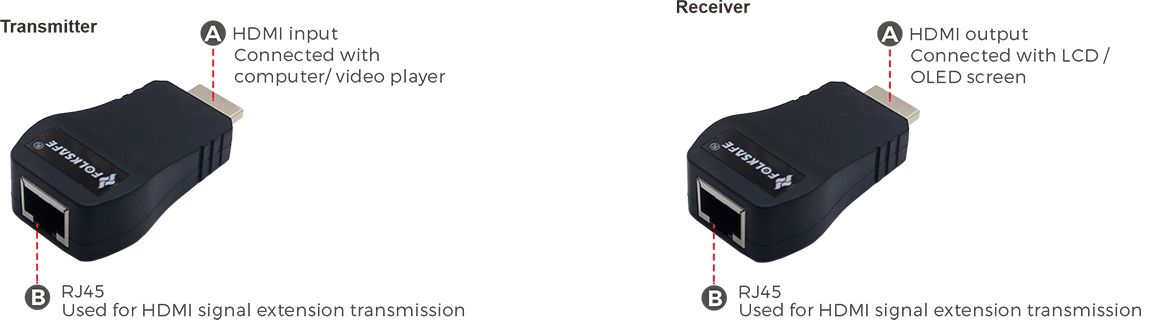

5) Check if FS-HD2000E-TX and FS-HD2000E-RX with normal input DC+5V Type.C power supply.

6) Replace the defective one with a proper unit, and check if end devices ( DVD, Display etc,) is damaged.

7) Contact the supplier if faults can't be removed after operations mentioned above.

8) Check if the resolution of the video source output exceeds the maximum resolution supported by the product, and please check if the resolution of the monitor is consistent with the maximum supported resolution of the product.

For breakdown caused by product quality, we guarantee products return within 15 days, exchange within 30 days, free warranty within 1 year. Guarantee period counts from the date of purchasing. Please note that there are certain instances where free warranty services cannot be provided:

(However, rest assured that repairs can still be carried out at a reasonable fee.)

1) Damages caused by man-made factors, such as application or storage under improper working environment or not in accordance with user manual.

2) Disassembling, repairing by user or testing, maintaining by maintenance point not designated by FOLKSAFE.

3) Damage caused by force majeure factors such as accident natural disasters (fires, lightning strike, earthquake) etc.

4) Other damages caused by improper operation and application.
