Waterproof Power Supply
This multi-channel waterproof centralized power supply adopts a brand new ABS plastic shell with IP65 waterproof function, suitable for outdoor and indoor multi-scene applications.

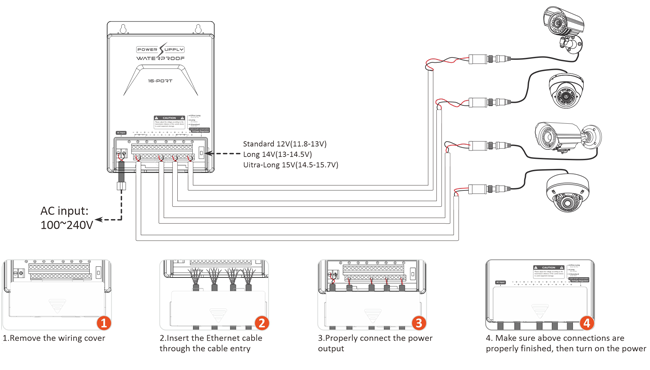

Mainly used for devices such as HD cameras and DVRs that require a stable voltage of 12VDC. Externally, each LED indicator is used to display the working status of each output, and it also has a wide voltage (DC: 11.5-15.7V) output function, the output voltage can be adjusted according to different distances to adapt to long-distance power supply equipment.
1 . All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2 . Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3 . Tolerance: includes set up tolerance, line regulation and load regulation.
4 . Line regulation is measured from low line to high line at rated load.
5 . Load regulation is measured from 0% to 100% rated load.
|
MODEL |
FS-DC121608W |
|
|
OUTPUT |
DC VOLTAGE |
12V |
|
RATED CURRENT |
8A |
|
|
CURRENT RANGE |
0-8A |
|
|
RATED POWER |
96W |
|
|
VOLTAGE ADJ.RANGE |
Standard 12V(11.8-13V), Long 14V(13-14.5V), Uitra-Long 15V(14.5-15.7V) |
|
|
OUTPUT CHANNELS |
16-CH |
|
|
EACH OUTPUT CURRENT |
0-1A |
|
|
FUSE |
PTC or Tube fuse, DC30V 1.35A |
|
|
VOLTAGE TOLERANCE (Note3) |
±1.5% |
|
|
LINE REGULATION (Note4) |
±0.5% |
|
|
LOAD REGULATION (Note5) |
±1% |
|
|
RIPPLE&NOISE (Note2) |
≤120mVp-p |
|
|
SETUP, RISE TIME |
430ms, 50ms/230VAC 1380ms, 50ms/115VAC (at full load) |
|
|
HOLD UP TIME (Typ.) |
16ms/230VAC 12ms/115VAC (at full load) |
|
|
INPUT |
VOLTAGE RANGE |
100~240V |
|
AC CURRENT (Typ.) |
1.8A/100VAC |
|
|
FREQUENCY RANGE |
50~60Hz |
|
|
EFFICIENCY (Typ.) |
86.5% |
|
|
LEAKAGE CURRENT |
<2mA/240VAC |
|
|
INRUSH CURRENT (Typ.) |
30A/230VAC |
|
|
PROTECTION |
OVERLOAD(Note.7) |
When the current exceeds the fuse rating (ambient 25 ℃), the fuse disconnects |
|
110 ~ 150% rated output power |
||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||
|
OVER VOLTAGE |
18-25V |
|
|
Hiccup mode, recovers automatically after fault condition is removed. |
||
|
OVER TEMPERATURE |
Hiccup mode, recovers automatically after fault condition is removed |
|
|
FUNCTION |
Aluminum heat dissipation |
Thickened heat dissipation aluminum can effectively reduce operating temperature |
|
ENVIRONMENT |
WORKING TEMP. |
-20～40℃(Refer to "Derating Curve") |
|
WORKING HUMIDITY |
20%～99% RH non-condensing |
|
|
STORAGE TEMP, HUMIDITY |
-40～85℃ 10%～95% RH |
|
|
TEMP. COEFFICIENT |
± 0.03% / 50℃ (0 ~ 50℃) |
|
|
VIBRATION |
10～ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
|
|
SAFETY |
WATERPROOF STANDARD |
IP65 |
|
SAFETY STANDARDS |
IEC/EN/UL/CSA 60950 GB4943 |
|
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC |
|
|
EMC EMISSION |
Compliance to BSMI CNS13438, EAC TP TC 020 |
|
|
EMC IMMUNITY |
Compliance to EAC TPTC 020 |
|
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH |
|
|
OTHERS |
MTBF |
≥300K hrs min. MIL-HDBK-217F (25℃) |
|
DIMENSION (L*W*H mm) |
200*140*42mm (L*W*H) |
|
|
PRODUCT WEIGHT |
0.518KGS |
|
