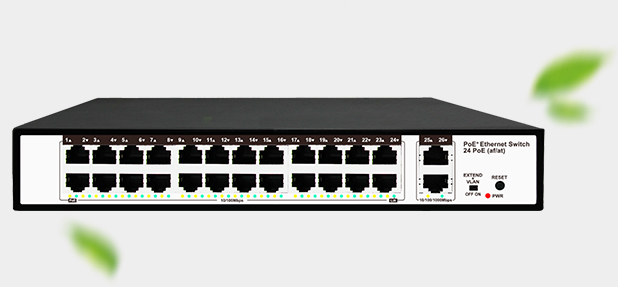

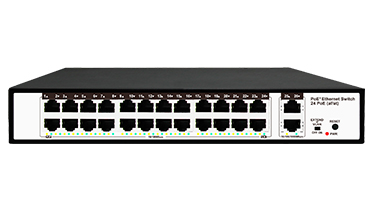

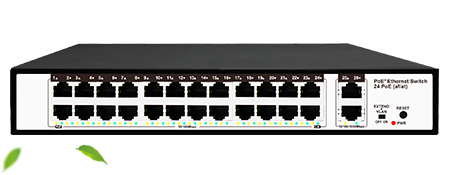

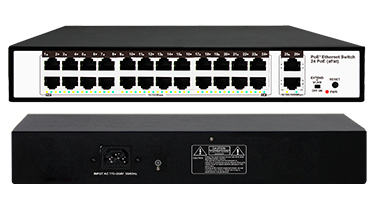

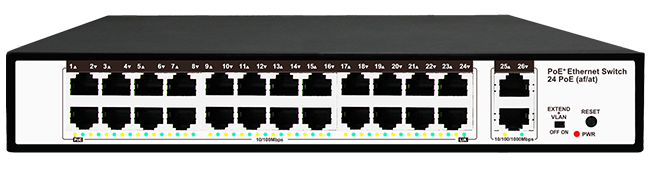

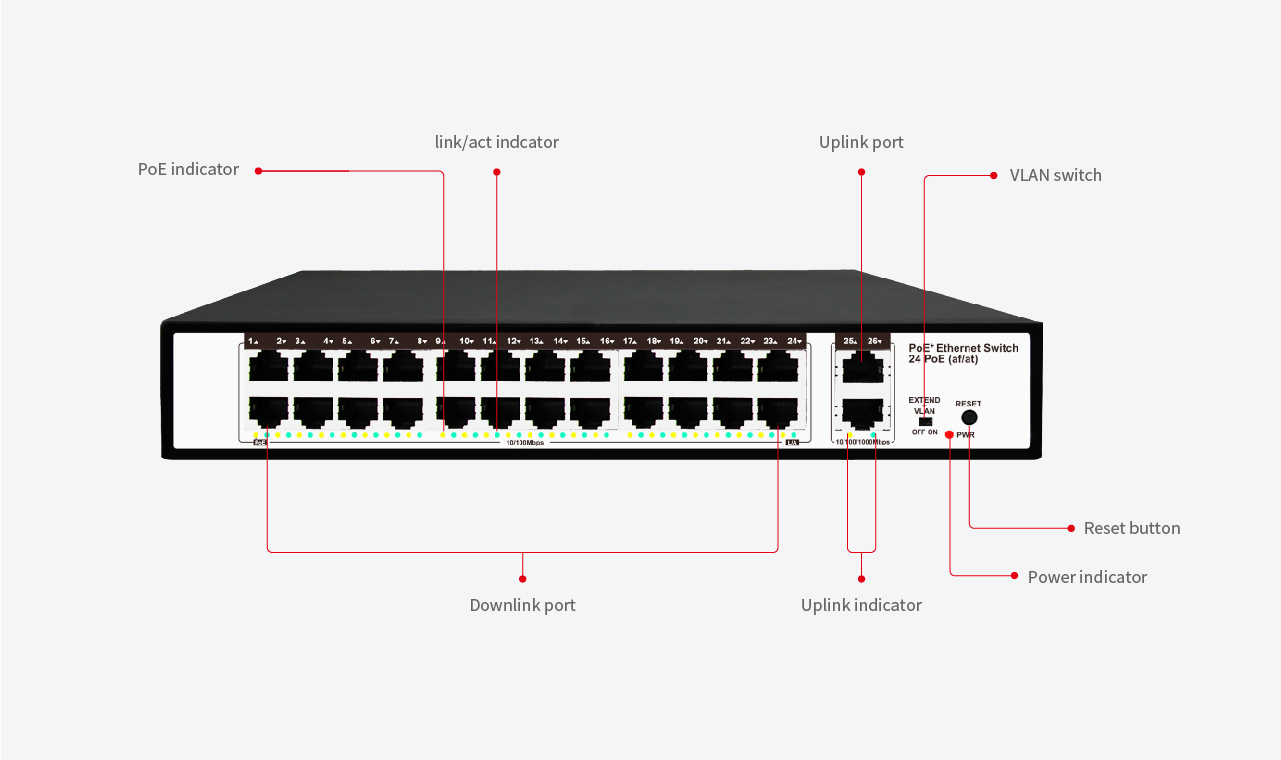

Model: FS-S0024EP-2G

24-Port 10/100Mbps IEEE 802.3af/at PoE Switch (End-Span PSE)


  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • Provide 15.4W or 30W power to powered devices
  • 200 watts PoE budget
  • Built-in 200W power supply
  • Gigabit uplink port: 2 *10/100/1000Mbps RJ-45
  • PoE data & power transmission distance up to 100meters
  • Port based VLAN for Enhancing Security
  • Transmission distance max up to 250 meters when VLAN is enabled
  • Backplane Bandwidth: 8.8Gbps
  • Restart function helps master IC reset wholly
  • Excellent anti-thunder, anti-static and anti-interference ability
  • Surge Protection: 2KV
  • Easy and convenient to use, plug & play, no need to configure
  • Galvanized housing for stable and durable working life
Support Auto MDI/MDIX


It supports standard Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.



The maximum extended distance up to 250 meters



When the VLAN mode is enabled, the data cannot be forwarded among DOWNLINK RJ-45 ports, but DOWNLINK ports and UPLINK RJ-45 port can communicate with each other. The bandwidth of DOWNLINK RJ-45 port is forced to 10Mbps mode to adapt to long distance transmission of max 250meters.



Save your cost and time




With data and power over Ethernet formed one unit, the FS-S0024EP-2G reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords.




Office Network

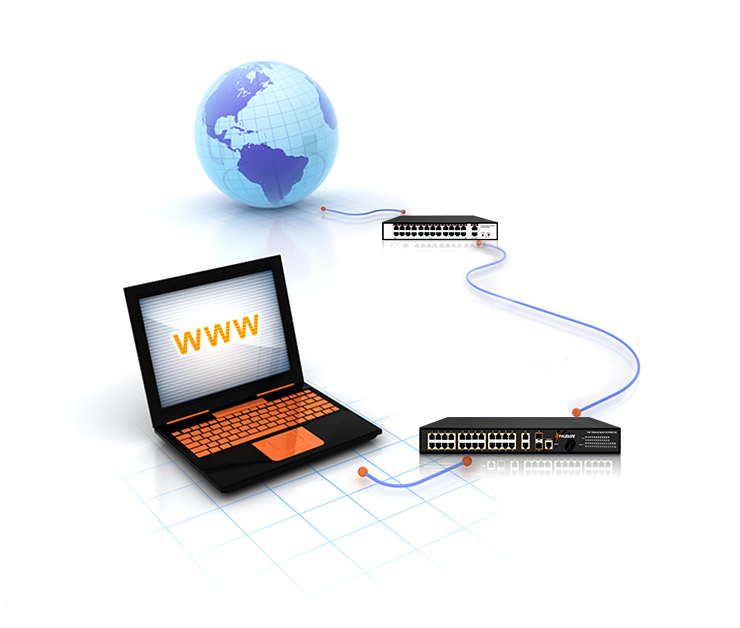

Cascade connection to better control
your surveillance system



It provides both 802.3af/at PoE functions along with 24 x 10/100Base-TX ports featuring 15.4-watt-802.3af/30-watt 802.3at PoE in RJ-45 interfaces and extra 2 x 10/100/1000Mbps UPLINK RJ-45 Ports to keep a cascade connection with another switch or NVR as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.




More features, more choices


Easy and convenient to use, plug & play, no need to configure.
