5GE+1SFP Full Gigabit Solar PoE Switch

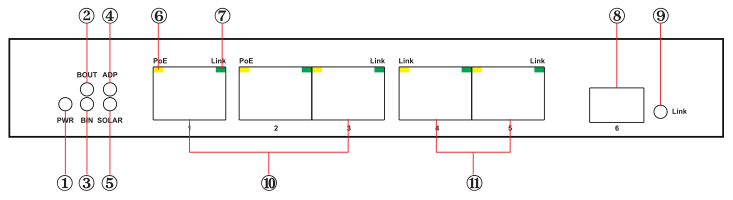

1 PWR: Power Indicator
2 BOUT: Battery power supply Indicator
3 BIN: Battery charging Indicator
4 ADP: Power adapter power supply indicator
5 SOLAR: Solar power supply indicator
6 PoE Indicator: Yellow Light on: when device is powered Light off: when device is not detected or powered
7 Link Indicator: Green LED on: link up off: link down blinks: data transferring
8 Fiber Port: Speed 1000Base-X, transfers data from PoE ports to other devices (NVR/Switch/ADSL)
9 Fiber Link Indicator: Green LED on: link up
10 PoE Ports: Transfer data from other IP devices to the switch
11 DC 24V Passive Ports: Non-standard DC 24V ports, provide 24V DC power to powered devices.

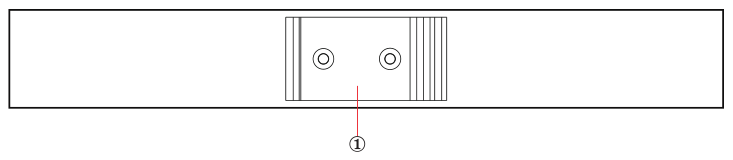

1 DIN-rail: Used to DIN-rail installation
(Small Form-factor Pluggable) A small transceiver that plugs into the SFP port of a network switch and connects to Fiber Channel and Gigabit Ethernet (GBE) optical fiber cables at the other end. Superseding the GBIC transceiver, SFP modules are also called "mini-GBIC" due to their smaller size. By choosing the appropriate SFP module, the same Electrical port on the switch can connect to fibers of different types (multi-mode or single mode) and different wavelengths. If the fiber is upgraded, the SFP module is replaced. The SFP converts the serial electrical signals to serial optical signals and vice versa. SFP modules are hot swappable and contain ID and system information for the switch.
1. Cat5e, Cat6, or Cat7 cable
2. RJ-45 connectors
3. Crimping tool
4. Wire stripper or Knife
1) We recommend stripping at least half an inch of the cable to expose the inner wires.
2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.
3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.
4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.
5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.
6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.
7) Make sure to test the cables before installing them once both ends of the cable have been completed.
Note:
1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.
2. Up to two units can be cascaded.
Package Contents
1) FS-S1005GP-SG: 1pc 2) 24VDC/3A Power adapter: 1pc
3) Screws: 10pcs 4) DIN rail: 1pc
5) Manual: 1pc

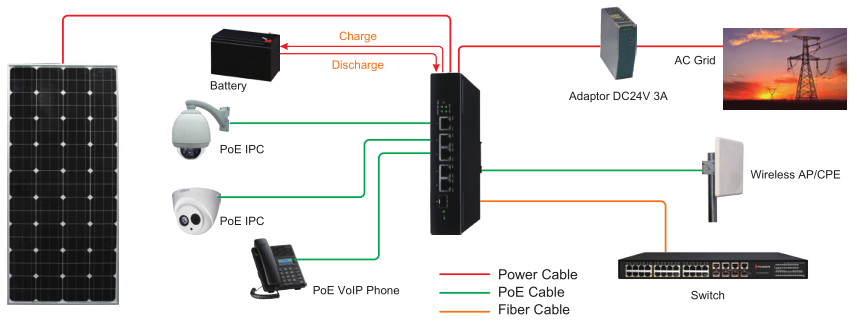

Step 1: Begin with all input/output devices turned off and power cables are removed.
Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.
Step 3: Connect 24VDC/3A power adaptor with PoE switches.
Step 4: Make sure above connection is properly finished, then turn on the power.
|
Model |
FS-S1005GP-SG |
|
|
Product Name |
5GE+1SFP Full Gigabit Solar PoE Switch |
|
|
Power Supply |
Power Supply Mode |
Solar Panel/Power Adaptor/Battery |
|
Voltage Range |
solar panel :DC15-28V Power Adaptor:DC18V-25V |
|
|
Battery type |
12V lead-acid batteries 12V/50AH |
|
|
Power Consumption |
The device <5W PoE power supply ≤90W |
|
|
Network Port Parameter |
Network Port |
Ethernet Downlink Port: 10/100/1000Mbps Ethernet Uplink Port: 1000Base-X SFP optical fiber port |
|
Transmission Distance |
Downlink port: 100m Uplink port :The transmission distance of optical fiber port depends on the different network media |
|
|
Transmission Medium |
Downlink port: Cat5e/6 standard cable Uplink port: optical fiber |
|
|
PoE Standards |
IEEE802.3af/at |
|
|
PoE Power Supply Mode |
End-span/Mid-span method |
|
|
PoE Power Supply Wattage |
Port-1 Hi-PoE≤60W, Port-2&3 PoE+≤30W, Port-4&5≤24W Whole device ≤120W |
|
|
Network Switch Specification |
Network Standards |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az |
|
Swap Mode |
Store-and- forward |
|
|
Data-Caching Mechanism |
1M |
|
|
MAC Address List |
2K |
|
|
Backplane Bandwidth |
12Gbps |
|
|
Forwarding Capacity |
8.92Mpps |
|
|
Indicator/Button |
Power Indicator |
Red LED on: power on |
|
Uplink Port |
Green LED on: link up, off: link down, blinks: data transferring |
|
|
PoE Indicator |
3 PoE indicator light (Yellow) |
|
|
Network Port Indicator |
1~5 port indicators blink while data transferring |
|
|
Protection Level |
Surge Protection |
4KV (common mode),10/700us IEC61000-4-5 2KV (differential mode),10/700us IEC61000-4-5 |
|
Electrostatic Protection |
Contact Discharge: ±6KV Air Discharge: ±8KV Standard: IEC61000-4-2 |
|
|
Reliability |
Stability Testing |
IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
|
Regulation Compliance |
FCC Part 15 Class A, CE |
|
|
Mean time between failures (MTBF) |
＞50000h |
|
|
Mechanical |
Dimensions (L*W*H) |
190mmx101mmx36mm |
|
Housing |
Galvanized & aluminum |
|
|
Body Color |
Black |
|
|
Net Weight |
550g |
|
|
Environmental |
Operating Temperature |
-20℃~60℃ |
|
Storage Temperature |
-40℃~85℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
