Model: FS-53D1300

53V-1.3A PoE Injector


  • Supply power to cat5e Ethernet network surveillance cameras
  • 2-port RJ45 interfaces,1-port Data input,1-port Data & Power output
  • 1-port Gigabit High Power over Ethernet Mid-span PSE
  • IEEE 802.3af/at Power over Ethernet compliant
  • Supports PoE Power up to 70 watts for PoE port
  • Auto-detection of PoE IEEE 802.3af/at equipment and devices that could be damaged by incorrect installation
  • Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
  • Provides DC 53V power over RJ45 Ethernet cable to device with Ethernet port
  • Remote power feeding up to 100m
  • AC 100-240V input power socket
  • Flexible LED indicator for Power LED and Active LED (PoE ready-in-use)

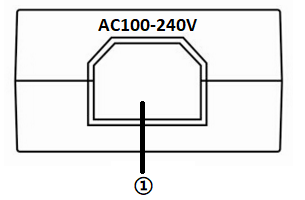

Front Panel

1 AC Power input interface

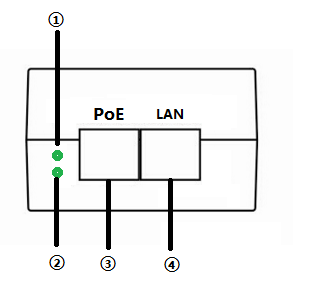

Rear Panel

1 Power Indicator: Green, ON: with power, OFF: no power

2 PoE Indicator: Light on when device is powered Light off when device is not powered or detected

3 PoE Port: Supplies power and data to camera or other IP devices

4 LAN Port: Transfers data from switch port

RJ 45 Define
How to make a network cable
To create a network cable, you will first need the equipment listed below.

1. Cat5, Cat5e, or Cat6 cable

2. RJ-45 connectors

3. Crimping tool

4. Wire stripper or Knife

The wire sequence of RJ45 connector must comply with international standard of EIA/TIA 568A or EIA/TIA 568B.

1) We recommend stripping at least half an inch of the cable to expose the inner wires.

2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.

3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.

4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.

5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.

6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.

7) Make sure to test the cables before installing them once both ends of the cable have been completed.

Note:

1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.

Overview

The FS-53D1300 PoE injector is an active device that provides a maximum of 70-watt power and high-speed Ethernet data connection to camera, it can transmit power and data together by using a cat5e/6 UTP cable.

The FS-53D1300 is a wall-mountable, single-port Gigabit 802.3at PoE+ 70W injector with internal power supply in compact housing. Carrying both Ethernet data and power simultaneously, the FS-53D1300 helps users to utilize just one Ethernet cable to easily install and deploy IP camera, wireless AP or VoIP phone networking in environments where power outlet is hard to find.

It offers an affordable, safe and reliable power solution for cost-conscious business and home users deploying Power over Ethernet networks.


Technical Specifications

  Model

FS-53D1300

                      Product Name

Single Channel PoE injector

Applied Devices

PTZ camera, , switchers, IP encoders, and IP phone

Power supply

Voltage Range

100-240V AC, 50/60Hz

Power Consumption

The device70W

Interface

Data Input Port

1 x RJ45

PoE (Data & Power) Output Port

1 x RJ45

AC Power Input

1 Power Socket

 Network

Cable

10BASE-T: 4-pair UTP Cat. 3, 4, 5, up to 100M (328ft)

100BASE-TX: 4-pair UTP Cat. 3, 4, 5, up to 100M (328ft)

1000BASE-T: 4-pair UTP Cat. 5, 5e, 6 up to 100M (328ft)

EIA/TIA-568 100-ohm STP (100m)

Rate

10/100/1000Mbps

Standards Conformance

IEEE 802.3 10BASE-T, IEEE 802.3u100BASE-TX, IEEE 802.3ab1000BASE-T

PoE Attribution

Power output

DC53V /1.3A

PoE Standard

IEEE 802.3af, IEEE 802.3at,IEEE802.3bt

Power Supply Type

Mid-span, end-span

Power Pin Assignment

1/2(+)4/5(+),3/6(-)7/8(-)

LED Indicator

System

Green, Light on: with power, Light off: no power

PoE Port

Green, Light on: when device is powered   Light off: when device is not detected or powered

Protection

Surge Protection

6KV (common mode), 10/700usIEC61000-4-5   2KV (differential mode), 10/700usIEC610000-4-5

Electrostatic Protection

Contact Discharge: ±4KV   Air Discharge: ±6KV   Standard: IEC61000-4-2

Compliance

Regulatory Compliance

CE mark commercial, FCC Part 15 Class B, RoHS

Mechanical

Housing

Galvanized

Body Color

Black

Dimensions(L*W*H)

150.1 x 61.2 x 35.5mm

Net Weight

200g

Relative Humidity

0~95% (non-condensing)

Working Temperature

0º ~55º C

Storage Temperature

-40º ~85º C

Reliability

Mean time between failures (MTBF)

>50000h


Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
