4-CH Ethernet and Power Receiver over Single Coaxial Cable
The FS-EPOC7004R-AC is an Ethernet and power signal receiver over single coaxial cable. The FS-EPOC7004R-AC is used with FS-EPOC7001T-PoE, which is an ideal solution for reconstruction of old projects without any change of existing coaxial cable. You needn't change coax into network cable when you want to change analog cameras into IP cameras. Both of Ethernet and power transmission distance max up to 1000 meters.
With high speed modem technology, the physical bandwidth reaches up to 100Mbps (bidirectional). The FS-EPOC7004R-AC has a built-in multi-stage surge and lightning protection to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars". The FS-EPOC7004R-AC is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.
Package Contents
1) FS-EPOC7001T-PoE: 1pc 2) FS-EPOC7004R-AC: 1pc
3) Brackets: 2 sets 4) Power Wire: 1pc
5) Screw: 8 pcs

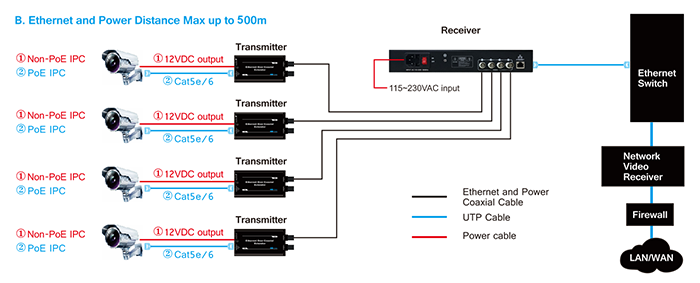

Step1: Connect Transmitter remote LAN port to RJ45 output interface of network device; connect 12VDC power output port to power interface of network device; Fix BNC connectors on both ends of coaxial cable and connect one end of this coaxial cable with Transmitter BNC interface.

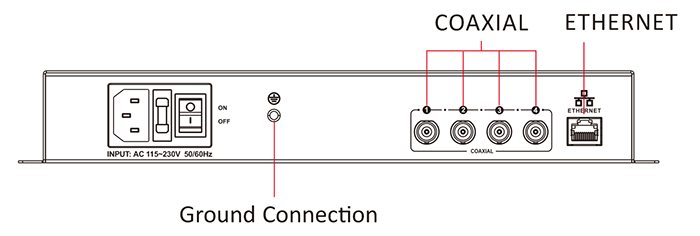

Step2: Connect Receiver LAN port to RJ45 input interface of network device; connect the other end of coaxial cable to BNC interface of the Receiver; Connect AC power cord to 53V power interface of the Receiver. To Check and ensure all connections are right, then connect the power supply.

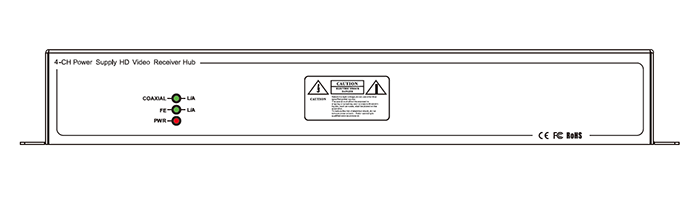

Step3: With internet connected, device will try connection automatically. Red lights turn on means power supplying well; Link indicator (Green lights) turns on means coaxial cable is well connected, quick shining means signal transmitting.
|
Model |
FS-EPOC7004R-AC |
|
|
Product Name |
Ethernet & Power Coaxial Receiver |
|
|
Power Supply |
Power Adaptor |
Input: 115~230VAC 50/60Hz |
|
No-Load Consumption |
1.5W(max) |
|
|
Offer Remote Current |
N/A |
|
|
RJ45 Interface |
Ethernet Interface |
RJ45 Interface |
|
Transmission Distance |
500m (max) |
|
|
Standard |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX |
|
|
Physical Speed |
100Mbps (Max) |
|
|
Coaxial Cable Interface |
Coaxial Cable Interface |
BNC connector |
|
Coaxial Cable Impedance |
75 Ohm |
|
|
Maximum Distance |
500m |
|
|
State Indicator |
Green Light |
Coaxial Cable Connecting Indicator |
|
Red Light |
Power on Indicator |
|
|
Green light on RJ45 jack |
Network Port Indicator |
|
|
Yellow light on RJ45 jack |
Network Port Indicator |
|
|
LED Indicators |
Green Light |
Coaxial cable connecting indicator |
|
Red Light |
Power indicator |
|
|
Green light on RJ45 jack |
Network Port Indicator |
|
|
Yellow light on RJ45 jack |
Network Port Indicator |
|
|
Lightning Protection Grade |
Transmission Port |
Differential Mode:2KV Common Mode:4KV Executive Standard: IEC61000-4-5 |
|
Device |
Contact discharge: 3 Grade air discharge: 3 Grade Executive Standard: IEC61000-4-2 |
|
|
Mechanical |
Dimensions(L*W*H) |
285*115*44.5mm |
|
Housing |
galvanized |
|
|
Body Color |
Black |
|
|
Weight |
300g |
|
|
Environmental |
Operating Temperature |
0～55℃ |
|
Storing Temperature |
-25℃~85℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
