Managed Ethernet & Power Extender

Model: FS-EPOC7001T-PoE

Single Channel Ethernet and Power Transmitter over Single Coaxial Cable


  • Support cascade mode; maximum four transmitters can be cascaded
  • Ethernet transmission distance max up to 1000 meters
  • Power transmission distance max up to 1000 meters with max 12W output power
  • Provide power to devices; max up to 12V/1A
  • Meet standards of IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
  • Support IEEE802.3af standard; automatically detect and recognize IEEE802.3af standard PD equipment and provide power to PD equipment
  • High speed modem technology, the physical bandwidth reaches up to 100Mbps (bidirectional)
  • Multi-stage strong surge and lightning protection design
  • Low power consumption, automatic error-correction coding technology
  • Easy to install, plug-and-play mode, fast network connection
Overview

The FS-EPOC7001T-PoE is an Ethernet and power signal transmitter over single coaxial cable. The FS-EPOC7001T-PoE is used with FS-EPOC7001R, which is an ideal solution for reconstruction of old projects without any change of existing coaxial cable. You needn't change coax into network cable when you want to change analog cameras into IP cameras. Both of Ethernet and power transmission distance max up to 1000meters. The FS-EPOC7001T-PoE is able to provide power to PoE cameras over network cable and it is able to provide power to NONE-PoE cameras, too.

With high speed modem technology, the physical bandwidth reaches up to 100Mbps (bidirectional). The FS-EPOC7001T-PoE has a built-in multi-stage surge and lightning protection to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".

The FS-EPOC7001T-PoE is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.

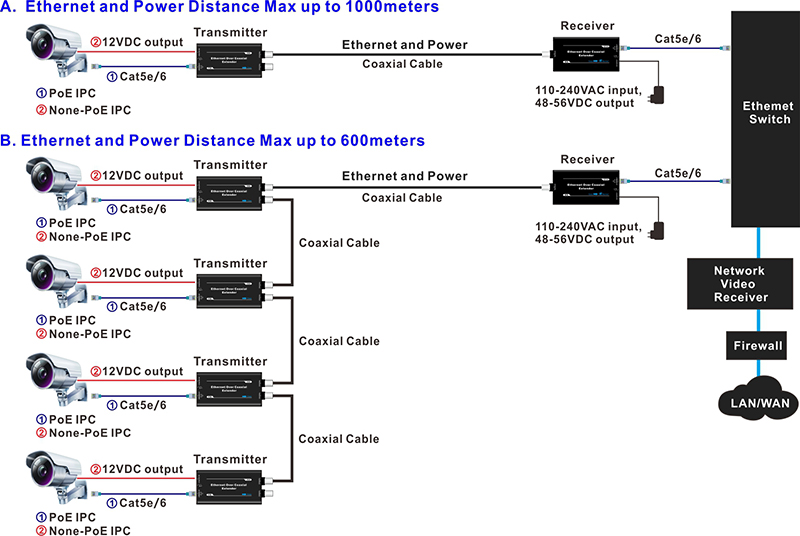

Note:

1. Max four transmitters can be cascaded.

2. Ethernet and power signals reach up to 1000 meters when transmitter is used with receiver in pairs.

3. The distance between the farthest transmitter and receiver is not more than 600 meters when the transmitters are cascaded.

4. Additional power will be required if power of POE IP camera exceeds 12W within distance of 1000 meters.


Quick Setup Guide

Step 1: Begin with all input/output devices turned off and power cables are removed.

Step 2: Connect of FS-EPOC7001T-PoE with of PoE cameras over one cat 5e/6 cable.

Step 3: Connectof FS-EPOC7001T-PoE withof FS-8001R over one Cat5e/6.

Step 4: Connectof FS-EPOC7001R withof switch or NVR over one cat 5e/6 cable.

Step 5: Connect 53VDC/1.3A power adaptor into of FS-EPOC7001R.

Step 6: Make sure above connection is properly finished, then turn on the power.

When Green indicator is on, which indicates Ethernet signal works.

When Red indicator is on, which indicates power works.

Technical Specifications

Model

FS-EPOC7001T-POE

Product Name

Single Channel Ethernet and Power Transmitter over Single Coaxial Cable

Power Supply

Power

Output:12V DC/1A

No-Load Power

1.5W(max)

RJ45 Interface

Ethernet Interface

RJ45 Interface

Transmission Distance

100m (max) over cat5e/6

Standards

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE 802.3af

Physical speed

100Mbps(bidirectional)

Coaxial Cable Interface

Coaxial Cable Interface

BNC connector

Coaxial Cable Impedance

75Ω

Maximum Distance

1000m (SYV75-5 Cable)

Transmission Distance

Distance

Bandwidth

300m

100Mbps

500m

90Mbps

800m

70Mbps

1000m

55Mbps

LED Indicators

Green Light

Coaxial cable connecting indicator

Red Light

Power indicator

Lightning Protection Grade

Network Port

Differential Mode:2KV    Common Mode:4KV

Executive StandardIEC61000-4-5

Device

contact discharge: 3 grade   air discharge: 3 Grade

Executive StandardIEC61000-4-2

Mechanical

Dimensions(L*W*H)

123*54*24mm

Housing

Aluminum

Body Color

Black

Weight

129g

Environmental

Operating Temperature

055

Storing Temperature

-25~85

Relative Humidity

0~95% (non-condensing)
