Managed Video & Power receiver hub

Model: FS-HD4608VPS36

8-CH 36VDC Power Supply HD Video Receiver Hub


  • Real-time transmission over UTP cat5e/6
  • Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
  • Provides camera power while receiving video signal
  • Please refer to “Video Transmission Distance Chart” Part to find out
  • distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
  • Power up to 305m(1000ft) with FS-HD4301VPCT for 12VDC HD camera
  • Female BNC connector and RJ45 Jack
  • Full Channel Support UTC (Up to Coaxial Control) with high quality image
  • Centralize power supply, reducing the use of engineering cables
  • Exceptional interference rejection
  • Built-in solid state TVS for surge protection & ground loop isolation
  • Wave Filter Design, Anti-Static Design
  • Lightning protection design Grade: Ⅲ
  • Black galvanized housing
  • Rack, wall mountable and desk installation with 4 rubber feet
Overview

FS-HD4608VPS36 is a 8 channel video and power hybrid receiver that consolidates all CCTV system cabling using standard EIA/TIA 568A/B structured building wiring.Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room,Video-Power Hub 36VDC allows the real time transmission of CCTV Video signal via cost-effective Unshielded Twisted Paired (UTP) cable.The Video-Power Hub 36VDC is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

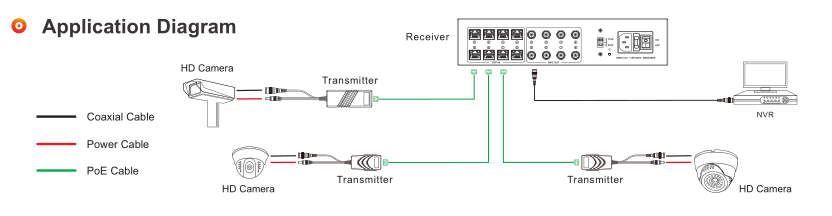

Working with transmitter FS-HD4301VPCT (convert 36VDC into regulated 12VDC),it can transmit the camera video and power hybrid signal up to 305m/1000ft for 12VDC output camera.

The superior interference rejection and low emissions of the Video-Power Hub 36VDC allows video and power signals to co-exist in various environment. Compared with traditional video receiver, Video-Power Hub 36VDC greatly reduces the cost and improves the performance. Compared with other similar products, Folksafe Video-Power Hub 36VDC has higher performance, better stability, and more obvious price advantage.


Note:

1. The actual transmission distance will vary according to the quality of the cable, specific camera, and on-site environment.

2. Please make sure to install transmitter at camera side and receiver at DVR side to achieve best video quality.

3. If you adjust saturation of DVR, video transmission distance could be farther. HD-CVI 720P: max up to 470m (1541ft).

4. If chromatic aberration occurs, please also adjust saturation, the picture will recover perfectly automatically.

5. The device is not waterproof and not to be used at outdoors.






Wire and Cable Recommendations

FS-HD4608VPS36 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG.

Individually shielded pairs should be avoided, as they reduced the operating range of the systems drastically.

Multi-pair cable (25-pair or more) with an overall shield is acceptable. Video signals can coexist in the same wire bundle as telephone, data-com, or low-voltages power circuits.

While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacity or inductive devices MUST BE removed from the pair.

For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.

Technical Specifications

Model

FS-HD4608VPS36

Product Name

8- Channel Power Supply HD Video Receiver Hub

Applied  Devices

CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment

Video

Video Format

HD-TVI/CVI/AHD/CVBS

Operating Frequency

DC to 71MHz

Common-mode/Differential-mode rejection

        15KHz to 71MHz  60 dB typ.

Impedance

Coax: Male BNC75Ω unbalanced

UTP: RJ45 Jack     100Ω unbalanced

Attenuation

0.5 dB typ.

Wire Type

Network Wiring

One Unshielded Twisted Pair (for each video signal)  24-16 AWG (0.5-1.31mm)

Category Type

UTP cat 5e/6

Impedance

100 ± 20 ohms

DC Loop Resistance

52 ohms per 1,000ft (18 ohms per 100m)

Differential Capacitance

19 pF/ft max (62 pF/m max)

Power

Power Input

110VAC/220VAC (optional)

Power transmission

36VDC up to 1000ft /305m via UTP cat5e/6

Power consumption

150W

Output power per channel

18.5W(max)

Connector

Video input

RJ45 Jack

Video output

Female BNC connector

Protection

Surge Protection

renewable solid state surge protection

Video Input

2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

Video Output

2KV(differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

Antistatic

YES

Mechanical

Dimensions(L*W*H)

300*261.2*67mm (BNC connector & mounting bracket excluded)

Housing

Black galvanized

Body Color

Black

Net Weight

6.85kg

Environmental

Operating Temperature

-25º ~ 75º C

Relative Humidity

0~95% (non-condensing)

Storage Temperature

-40º ~ 150º C

Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
