Managed 4/8/16/ Channel Passive Video Balun

Model: FS-HDP4616

16 Channel HD Passive Video Balun


  • Real-time transmission over UTP cat5e/6
  • Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
  • Please refer to “Transmission Distance Chart” Part to find out distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
  • Female BNC connector
  • Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
  • Wave Filter Design, Anti-Static Design
  • Lightning protection design Grade: Ⅲ
  • 60dB crosstalk and noise immunity
  • Exceptional interference rejection
  • Galvanized housing
Overview

The FS-HDP4616 video balun hub is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The FS-HDP4616 is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

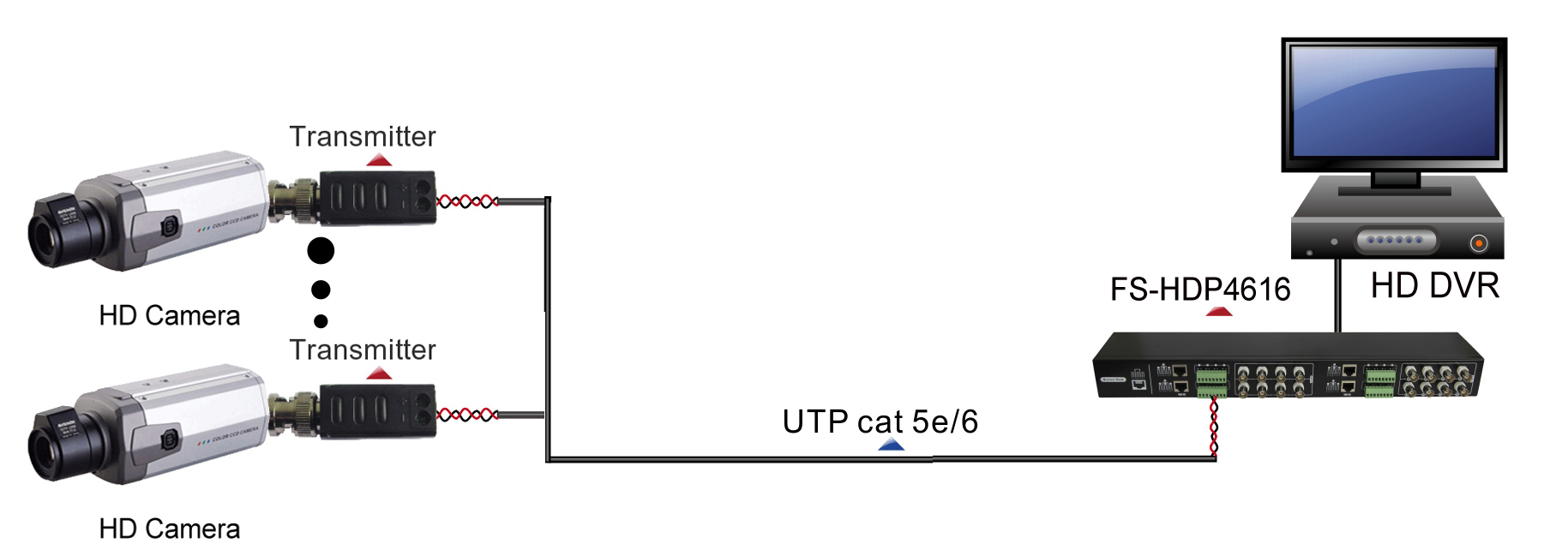

The FS-HDP4616 supports pluggable screw terminal or RJ45 connections. Used with single channel HD passive video transmitter, the FS-HDP616 is capable to receive 16 channel live CCTV HD video signal from camera end via one UTP cable.

The superior interference rejection and low emissions of the FS-HDP4616 allow video signals to coexist in the same wire bundle as telephone,  datacom, or low-voltage   power circuits. This allows the use of a shared or existing cable plant. The FS-HDP4616 is built-in surge suppressor to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".


Note:

1. The actual transmission distance will vary according to the quality of the cable, specific camera, and on-site environment.

2. Please make sure to install transmitter at camera side and receiver at DVR side to achieve best video quality.

3. If you adjust saturation of DVR, video transmission distance could be farther. HD-CVI 720P: max up to 470m (1541ft).

4. If chromatic aberration occurs, please also adjust saturation, the picture will recover perfectly automatically.

5. The device is not waterproof and not to be used at outdoors.






Wire and Cable Recommendations

The FS-HDP4616 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG.

Individually shielded pairs should be avoided, as they reduced the operating range of the systems drastically.

Multi-pair cable (25-pair or more) with an overall shield is acceptable. Video signals can coexist in the same wire bundle as telephone, data-com, or low-voltages power circuits.

While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacity or inductive devices MUST BE removed from the pair.

For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.

Technical Specifications

Model

FS-HDP4616

Product Name

16 Channel HD Passive Video Balun

Applied Devices

CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment

Video

Video Format

 HD-TVI/CVI/AHD/CVBS

Operating Frequency

DC to 71MHz

Common-mode/Differential-mode rejection

15KHz to 71MHz  60 dB typ.

Impedance

   Coax: female BNC    75Ω unbalanced

     UTP: screw terminal block or RJ45 Jack   100Ω balanced

Attenuation

1.5 dB typ. Max

Wire Type

Network Wiring

One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)

Category Type

UTP cat 5e/6

Impedance

100 ± 20 ohms

DC Loop Resistance

52 ohms per 1,000ft (18 ohms per 100m)

Differential Capacitance

19 pF/ft max (62 pF/m max)

Power

No external power required

Connector

Video input/output

Female BNC connector

Video output/input

pluggable screw terminal block and RJ45 for UTP (select one connection)

Protection

Surge Protection

renewable solid state surge protection

Video Input

2KV (common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

Video Output

2KV (differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

Antistatic

YES

Mechanical

Dimensions(L*W*H)

BNC connector & mounting bracket excluded

430*85*44.5mm

Housing

Galvanized

Body Color

Black

Net Weight

1250g

Environmental

Operating Temperature

-20º ~ 70º C

Relative Humidity

0~95% (non-condensing)

Storage Temperature

-40º ~ 150º C

Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
