Managed HD Passive Video Balun

Model: FS-HDP4100

Single Channel HD Passive Video Balun


  • Real-time transmission over UTP cat5e/6
  • No power required
  • Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
  • Please refer to “Transmission Distance Chart” Part to find out distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
  • Male BNC connector
  • Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
  • Wave Filter Design, Anti-Static Design
  • Lightning protection design Grade: Ⅲ
  • 60 dB crosstalk and noise immunity
  • Exceptional interference rejection
  • ABS engineering plastic housing
Overview

The FS-HDP4100 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video  signal via cost-effective Unshielded Twisted Paired (UTP) cable. The FS-HDP4100 is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

The FS-HDP4100 has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Push-pin terminal block allows tool-less connection of UTP cable output.Used in pairs, the FS-HDP4100 eliminates costly and bulky coaxial cable..

The superior interference rejection and low emissions of the FS-HDP4100 allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The FS-HDP4100 is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.


Note:

1. The actual transmission distance will vary according to the quality of the cable, specific camera, and on-site environment.

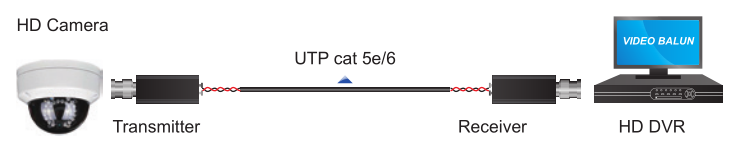

2. Please make sure to install transmitter at camera side and receiver at DVR side to achieve best video quality.

3. If you adjust saturation of DVR, video transmission distance could be farther. HD-CVI 720P: max up to 470m (1541ft).

4. If chromatic aberration occurs, please also adjust saturation, the picture will recover perfectly automatically.

5. The device is not waterproof and not to be used at outdoors.







Wire and Cable Recommendations

The FS-HDP4100 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG.

Individually shielded pairs should be avoided, as they reduce the operating range of the systems drastically.

Multi-pair cable (25-pair or more) with an overall shield is acceptable. Video signals can coexist in the same wire bundle as telephone, data-com, or low-voltages power circuits.

While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacity or inductive devices MUST BE removed from the pair.

For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.

Technical Specifications

            Model

FS-HDP4100

                        Product Name

Single Channel HD Passive Video Balun

                         Applied Devices

CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment

Video

Video Format

HD-TVI/ CVI/AHD /CVBS

Operating Frequency

DC to 71MHz

Common-mode/Differential-mode rejection

15KHz to 71MHz   60 dB typ.

Impedance

Coax: Male BNC          75Ω unbalanced

  UTP: push-pin terminal block   100Ω balanced

Attenuation

1.5 dB typ. Max

Wire Type

Network Wiring

One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)

Category Type

UTP cat 5e/6

Impedance

100 ± 20 ohms

DC Loop Resistance

52 ohms per 1,000ft (18 ohms per 100m)

Differential Capacitance

19 pF/ft max (62 pF/m max)

           Power

No external power required

Connector

Video input/output

Male BNC connector

Video input/output

Tool-less push-pin terminal block

Protection

Surge Protection

renewable solid state surge protection

Video Input

2KV (common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

Video Output

2KV (differential mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

Mechanical



Housing

ABS engineering plastic

Body Color

Black

Dimensions(L*W*H)

35.1*16.7*18.7mm (BNC connector excluded)

Net Weight

40g

Environmental



Operating Temperature

-20º ~ 70º C

Relative Humidity

0~95% (non-condensing)

Storage Temperature

-40º ~ 150º C

Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
