Managed HD Passive Video Balun

Model: FS-HDP4000

Single Channel Ground Loop Isolated HD Passive Video Balun


  • Real-time transmissionover UTP cat5e/6
  • No power required
  • Push pin terminal connection; 2-pins for UTP cat5e/6; 1-pin for ground connection
  • Compatible with all HD-TVI, HD-CVI, AHD& CVBS analog cameras
  • Please refer to “Transmission Distance Chart” Part to find out the distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
  • Male BNC connectorwith extended mini-coax pigtail
  • Built-in TVS (Transient Voltage Suppressor) for surge protection
  • Wave Filter Design, Anti-Static Design
  • Lightning protection design Grade: III
  • 60 dB crosstalk and noise immunity
  • Exceptional interference rejection
  • ABS engineering plastic housing
Overview

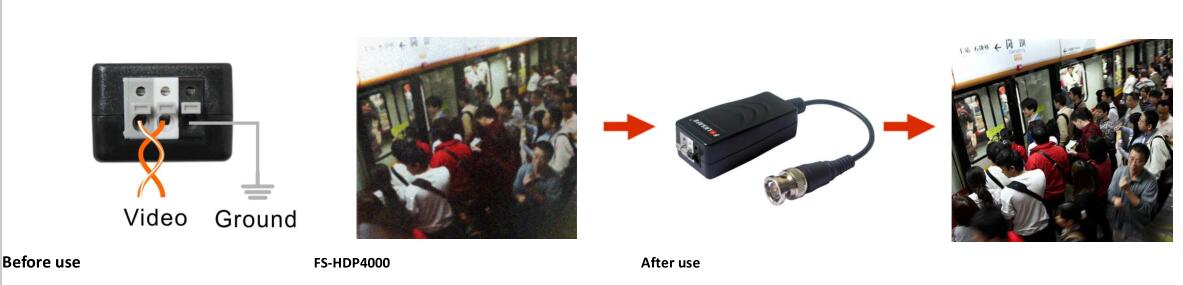

The FS-HDP4000 is a single channel passive videoreceiver built-in ground loop isolator that mainly uses for solving the signal interference problem caused by potential source of interference. This device features super lightning protection and can be used for security monitoring system.FS-HDP4000 is compatible with all HD-TVI, HD-CVI, AHD &CVBS analog cameras.

The FS-HDP4000 worked with any HD passive transmitter featuring long transmission distance, good transmission effect and super interference rejection. It is widely used in various complex environment to prevent from interference.

Video signals can coexist in the same wire bundle as telephone, datacom, or low-voltages power circuits. It is very economical and convenient to environment.Compared with traditional audio and video transmission products,  the FS-HDP4000 greatly reduce the cost and improve the performance. Compared with other similar products, FOLKSAFE FS-HDP4000 has higher performance, better stability, and better price advantage.


Note:

1. The actual transmission distance will vary according to the quality of the cable, specific camera, and on-site environment.

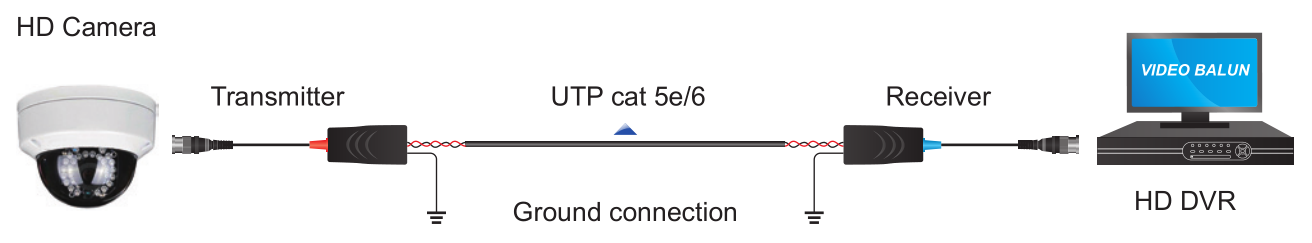

2. Please make sure to install transmitter at camera side and receiver at DVR side to achieve best video quality.

3. If you adjust saturation of DVR, video transmission distance could be farther. HD-CVI 720P: max up to 470m (1541ft).

4. If chromatic aberration occurs, please also adjust saturation, the picture will recover perfectly automatically.

5. The device is not waterproof and not to be used at outdoors.






Wire and Cable Recommendations

The FS-HDP4000 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG.

Individually shielded pairs should be avoided, as they reduced the operating range of the systems drastically.

Multi-pair cable (25-pair or more) with an overall shield is acceptable. Video signals can coexist in the same wire bundle as telephone, data-com, or low-voltages power circuits.

While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacity or inductive devices MUST BE removed from the pair.

For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.

Technical Specifications

                                 Model

FS-HDP4000

                        Product Name

Single Channel Ground Loop Isolated HD Passive Video Balun

                         Applied Devices

CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment

Video

Video Format

HD-TVI/CVI/AHD/CVBS

Operating Frequency

DC to 71MHz

Common-mode/Differential-mode rejection

15KHz to 42MHz   60 dB typ.

Impedance

    CoaxMale BNC     75Ω unbalanced

    UTP: push-pin terminal block   100Ω balanced

Attenuation

1.5 dB typ. Max

Wire Type

Network Wiring

One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)

Category Type

UTP cat 5e/6

Impedance

100 ± 20 ohms

DC Loop Resistance

52 ohms per 1,000ft (18 ohms per 100m)

Differential Capacitance

19 pF/ft max (62 pF/m max)

            Power

No external power required

Connector

Video Input / Output

Male BNC connector

Video Input / Output

Tool-less push-pin terminal block

Protection

Surge Protection

renewable solid state surge protection

Video Input

2KV (common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

Video Output

2KV (differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

Mechanical



Housing

ABS engineering plastic

Body Color

Black

Dimensions(L*W*H)

60.5*29.5*20.5mm (BNC connector & cable excluded)

Net Weight

65g

Environmental



Operating Temperature

-20º ~ 70º C

Relative Humidity

0~95% (non-condensing)

Storage Temperature

-40º ~ 150º C

Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
