Single Channel HD Video, Power & Data Transmitter & Receiver (12V/24V DC/AC)
The FS-HD4301VPD is video, power & data transmitter and receiver that allows the transmission of real-time CCTV HD video, power and data signal via cost-effective Unshielded Twisted Paired (UTP) cable.
The FS-HD4301VPD is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras. Used in pairs, the FS-HD4301VPD eliminates costly and bulky coaxial cable.
The superior interference rejection and low emissions of the FS-HD4301VPD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.
The FS-HD4301VPD is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
Note:
1. The actual transmission distance will vary according to the quality of the cable, specific camera, and on-site environment.

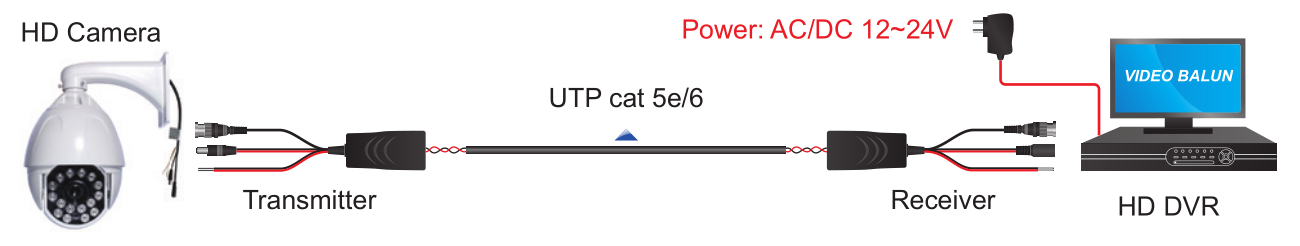

2. Please make sure to install transmitter at camera side and receiver at DVR side to achieve best video quality.
3. If you adjust saturation of DVR, video transmission distance could be farther. HD-CVI 720P: max up to 470m (1541ft).
4. If chromatic aberration occurs, please also adjust saturation, the picture will recover perfectly automatically.
5. The device is not waterproof and not to be used at outdoors.

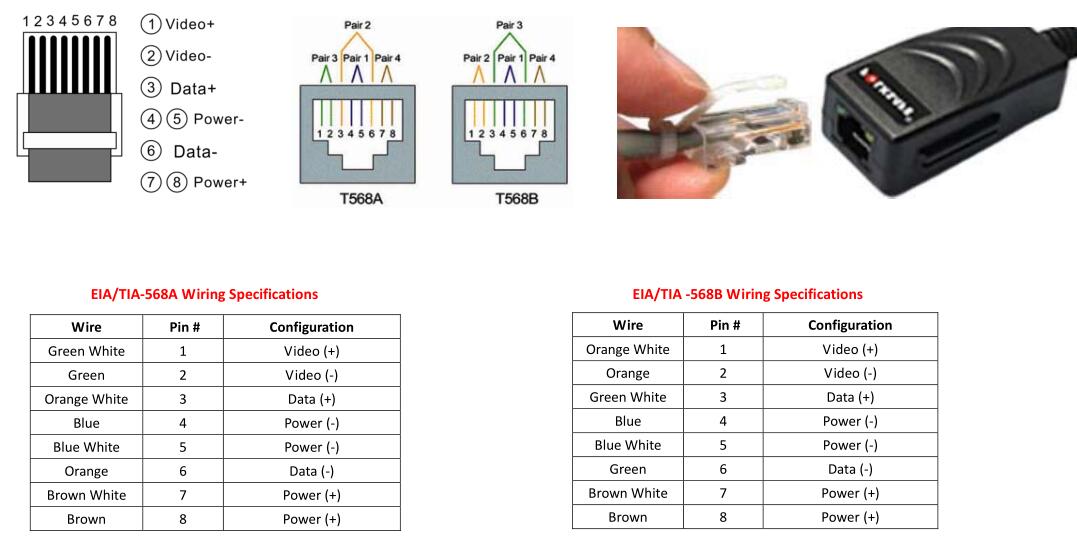

The FS-HD4301VPD is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG.
Individually shielded pairs should be avoided, as they reduced the operating range of the systems drastically.
Multi-pair cable (25-pair or more) with an overall shield is acceptable. Video signals can coexist in the same wire bundle as telephone, data-com, or low-voltages power circuits.
While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacity or inductive devices MUST BE removed from the pair.
For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.
|
Model |
FS-HD4301VPD |
|
|
Product Name |
Single Channel HD Video, Power & Data Transmitter & Receiver |
|
|
Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
|
|
Video |
Video Format |
HD-TVI/CVI/AHD/CVBS |
|
Operating Frequency |
DC to 71MHz |
|
|
Common-mode/Differential-mode rejection |
15KHz to 71MHz 60 dB typ. |
|
|
Impedance |
Coax: Male BNC 75Ω unbalanced |
|
|
UTP: RJ45 100Ω balanced |
||
|
Attenuation |
1.5 dB typ. Max |
|
|
Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
|
Category Type |
UTP cat 5e/6 |
|
|
Impedance |
100 ± 20 ohms |
|
|
DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
|
|
Differential Capacitance |
19 pF/ft max (62 pF/m max) |
|
|
Power |
Power Input |
12V/24V, DC/AC |
|
Power transmission |
12V/24V, DC/AC, via UTP cat5e/6, please refer to power distance chart above |
|
|
Data Signal |
Transmission distance |
Up to 984ft(300m) via UTP cat5e/6 |
|
Connector |
Video input/output |
Male BNC connector |
|
Video input/output |
RJ-45 Jack |
|
|
Protection |
Surge Protection |
renewable solid state surge protection |
|
Video Input |
2KV (common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) |
|
|
Video Output |
2KV (different mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) |
|
|
Mechanical
|
Housing |
ABS engineering plastic |
|
Body Color |
Black |
|
|
Dimensions(L*W*H) |
60.4*29*20.4mm (BNC connector & cable excluded) |
|
|
Net Weight |
65g |
|
|
Environmental
|
Operating Temperature |
-20º ~ 70º C |
|
Relative Humidity |
0~95% (non-condensing) |
|
|
Storage Temperature |
-40º ~ 150º C |
|
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
