Managed Video, Power, Audio & Data Balun

Model: FS-HD4301VPC

Single Channel HD Video & Power Balun (Convert 36VDC to regulated 12VDC)


  • Real-time transmission over UTP cat5e/6
  • No power required
  • Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
  • Please refer to “Transmission Distance Chart” Part to find out
  • distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
  • Power distance is up to 305m(1000ft) over 3 pairs of UTP cat 5e/6
  • Male BNC connector with extended mini-coax pigtail
  • RJ-45 Jack for UTP cable
  • Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
  • Wave Filter Design, Anti-Static Design
  • Lightning protection design Grade: Ⅲ
  • 60 dB crosstalk and noise immunity
  • Exceptional interference rejection
  • ABS engineering plastic housing
Overview

The FS-HD4301VPC is video & power balun that allows the transmission of real-time CCTV HD video and power signal via cost-effective unshielded Twisted Paired (UTP) cable. The FS-HD4301VPC is compatible with all HD-TVI, HD-CVI, AHD & CVBS analog cameras.

The FS-HD4301VPC can convert 36VDC into regulated 12VDC which allows power transmission max up to 305m(1000ft).

The superior interference rejection and low emissions of the FS-HD4301VPC allow video & power signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The FS-HD4301VPC is built-in surge suppressor to protect video equipment against damaging voltage spikes.
Its crosstalk and noise immunity ensure quality video signals.


Note:

1. The actual transmission distance will vary according to the quality of the cable, specific camera, and on-site environment.

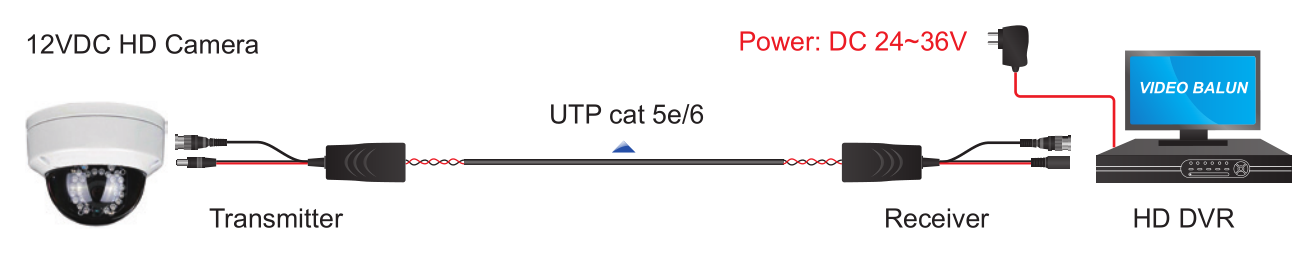

2. Please make sure to install transmitter at camera side and receiver at DVR side to achieve best video quality.

3. If you adjust saturation of DVR, video transmission distance could be farther. HD-CVI 720P: max up to 470m (1541ft).

4. If chromatic aberration occurs, please also adjust saturation, the picture will recover perfectly automatically.

5. The device is not waterproof and not to be used at outdoors.




Wire and Cable Recommendations

The FS-HD4301VPC is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG.

Individually shielded pairs should be avoided, as they reduced the operating range of the systems drastically.

Multi-pair cable (25-pair or more) with an overall shield is acceptable. Video signals can coexist in the same wire bundle as telephone, data-com, or low-voltages power circuits.

While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacity or inductive devices MUST BE removed from the pair.

For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.

Technical Specifications

           Model

FS-HD4301VPC

             Product Name

Single Channel HD Video & Power Transmitter & Receiver

              Applied Devices

CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipments

Video

Video Format

    HD-TVI/CVI/AHD/CVBS

Operating Frequency

  DC to 71MHz

Common-mode/Differential-mode rejection

           15KHz to 71MHz    60 dB typ.

Impedance

Coax: Male BNC  75Ω unbalanced

UTP: RJ45       100Ω balanced

Attenuation

1.5 dB typ. Max

Wire Type

Network Wiring

One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)

Category Type

UTP cat 5e/6

Impedance

100 ± 20 ohms

DC Loop Resistance

52 ohms per 1,000ft (18 ohms per 100m)

Differential Capacitance

19 pF/ft max (62 pF/m max)

Power

Power Input

36VDC

Power Transmission

Power distance max up to 305m(1000ft) over 3pairs of UTP cat 5e/6

Connector

Video input/output

Male BNC connector

Video input/output

RJ45 Jack

Protection

Surge Protection

renewable solid state surge protection

Video Input

2KV (common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

Video Output

2KV (different mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

Mechanical



Housing

ABS engineering plastic

Body Color

Black

Dimensions(L*W*H)

60.4*29*20.4mm (BNC connector & cable excluded)

Net Weight

60g

Environmental



Operating Temperature

-20º ~ 70º C

Relative Humidity

0~95% (non-condensing)

Storage Temperature

-40º ~ 150º C

Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
