Managed Industrial PoE switch

Model: FS-S3008EP-2C

8-Port 10/100Mbps IEEE 802.3af/at Industrial PoE Switch (End-Span PSE)


  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • 4-Port support 48V-56VDC power to PoE powered devices
  • Provide 15.4W or 30W power to powered devices
  • 2 Combo uplink port:10/100/1000Mbps RJ-45 or 1000Base-X optical fiber SFP port
  • 120-watts PoE budget
  • PoE data & power transmission distance up to 100meters
  • Excellent anti-thunder, anti-static and anti-interference ability
  • Surge Protection: 6KV
  • Restart function helps master IC reset wholly
  • External 53VDC/2.5A power adapter included
  • Easy and convenient to use, plug & play, no need to configure
  • Galvanized housing for stable and durable working life
  • Working temperature -40~75℃

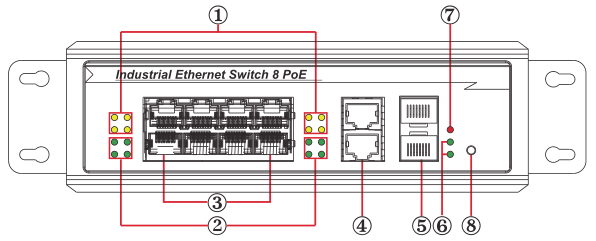

Front & Rear Panel

1 PoE Indicator: Yellow Light on: when device is powered Light off: when device is not detected or powered

2 Link/ Act Indicator: Green Light on: link up off: link down blinks: data transferring

3 Downlink Port: Transfer data from other IP devices to the switch

4 Uplink RJ45 Port: Transfer data from PoE ports to other devices (NVR/Switch/ADSL)

5 Uplink SFP Port: Transfer data from PoE ports to other devices (NVR/Switch/ADSL)

6 Uplink Indicator: Green LED on: link up off: link down blinks: data transferring

7 Power Indicator: Red Light on: with power Light off: no power

8 Reset Button: Press the reset button to turn on indicator and the device restarts

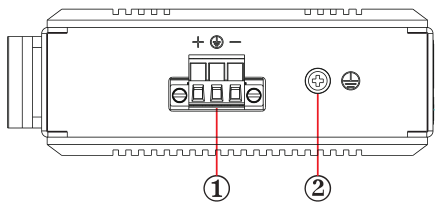

Side Panel

1 Power Input: DC 48~56V

2 Ground Connection

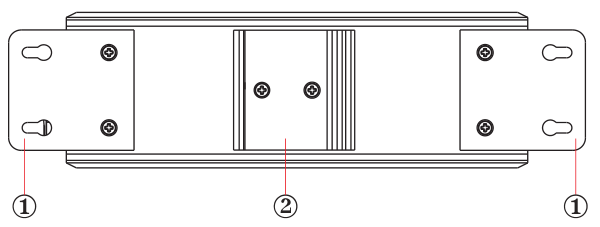

Rear Panel

1 Rack-mounting ears: Used to wall mount installation

2 DIN-rail: Used to DIN-rail installation

What is a Combo Port on an Ethernet Switch

A Gigabit Ethernet Combo port is an Ethernet port and a Mini-GBIC port (also called SFP’s) that share the same switch fabric and port number. A Combo port is a way to provide different types of connectivity without taking up unused switch fabric. These Combo ports can also be labeled as tied, meaning two different physical ports that can only be used one at a time. A Gigabit Ethernet Combo port consists of one 1000Base-T Gigabit over Copper port (provided), and one Mini-GBIC port (empty port that requires Mini-GBIC module).


Note:

If a Mini-GBIC port is being used, then the corresponding 1000BASE-T copper port is automatically disabled and vice versa.

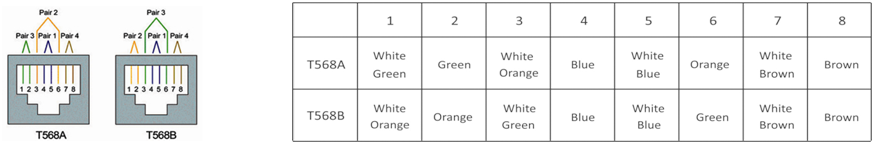

RJ 45 Define
How to make a network cable
To create a network cable, you will first need the equipment listed below.

1. Cat5e, Cat6, or Cat7 cable

2. RJ-45 connectors

3. Crimping tool

4. Wire stripper or Knife

The wire sequence of RJ45 connector must comply with international standard of EIA/TIA 568A or EIA/TIA 568B.

1) We recommend stripping at least half an inch of the cable to expose the inner wires.

2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.

3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.

4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.

5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.

6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.

7) Make sure to test the cables before installing them once both ends of the cable have been completed.

Note:

1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.

2. Up to two units can be cascaded.

Quick Setup Guide

Package Contents

1) FS-S3008EP-2C: 1pc             2) 53VDC/2.5A Power adapter: 1pc

3) Screws: 10pcs                     4) DIN rail: 1pc

5) Mounting-ears: 2pcs             6) Manual: 1pc


Step 1: Begin with all input/output devices turned off and power cables are removed.

Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.

Step 3: Connect Uplink port of PoE switches with RJ-45 port of NVR or computer or other devices over standard Cat 5e/6 cables.

Step 4: Connect 53VDC/2.5A power adaptor with PoE switches.

Step 5: Make sure above connection is properly finished, then turn on the power.

Technical Specifications

Model

FS-S3008EP-2C

Product Name

8-Port 10/100Mbps IEEE 802.3af/at Industrial PoE Switch

Power Supply

Power Supply Mode

Power Adaptor

Voltage Range

DC48~56V

Power Consumption

The device <5W     PoE power supply 120W

Network Port Parameter

Network Port

Ethernet Downlink Port: 10/100Mbps     Ethernet 2 Uplink Port: 10/100/1000Mbps or 1000Base-X

Transmission Distance

Downlink port: 100m   Uplink RJ45 port: 100m

SFP Port: The transmission distance of optical fiber port depends on the different SFP modules

Transmission Medium

Downlink port: Cat5e/6 standard cable   Uplink port: Cat5e/6 standard cable

PoE Standards

IEEE802.3af/at

PoE Power Supply Mode

End-span method

PoE Power Supply Wattage

Each port 30W   Whole device 120W

Network Switch Specification

Network Standards

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az

Swap Mode

Store-and- forward

Data-Caching Mechanism

1M

MAC Address List

8K

Forwarding Capacity

4.16Mpps

Indicator/Button

Power Indicator

Red LED on: power on

Uplink Port

Green LED on: link up, off: link down, blinks: data transferring

PoE Indicator

8 PoE indicator light (Yellow)

PoE Network Port Indicator

8 port indicators blink while data transferring

Protection Level

Surge Protection

6KV (common mode),10/700us IEC61000-4-5   2KV (differential mode),10/700us IEC610000-4-5

Electrostatic Protection

Contact Discharge: ±8KV   Air Discharge: ±15KV   Standard: IEC61000-4-2

Reliability

Stability Testing

IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)

Regulation Compliance

FCC Part 15 Class A, CE

Mean time between failures (MTBF)

200000h

Mechanical

Dimensions (L*W*H)

184mmx140mmx56mm

Housing

Galvanized & aluminum

Body Color

Black

Net Weight

750g

Environmental

Operating Temperature

-40~75

Storage Temperature

-40~85

Relative Humidity

0~95% (non-condensing)

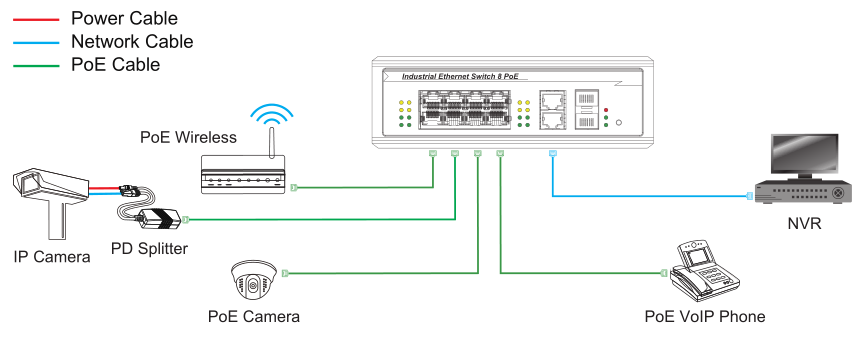

Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
