Managed Managed PoE switch

Model: FS-S2024EP-2C

24-Port 10/100Mbps IEEE 802.3af/at Web Smart Managed PoE Switch (End-Span PSE)


  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • Support L2 switching function, including 802.1QVLAN, port mirroring, port isolation, IGMP Snooping function, LLDP, PoE+ management and ARP detection
  • Support WEB, TELNET & SNMP management
  • Support STP (802.1D) and RSTP (802.1w)
  • 24-Port support 48V-56VDC power to PoE powered devices
  • Provide 15.4W or 30W power to powered devices
  • 2 Combo uplink port:10/100/1000Mbps RJ-45 or 1000Base-X optical fiber port SFP
  • 300-watts PoE budget
  • PoE data & power transmission distance up to 100 meters
  • Excellent anti-thunder, anti-static and anti-interference ability
  • Surge Protection: 6KV
  • Restart function helps master IC reset wholly
  • Easy and convenient to use, plug & play, no need to configure
  • Galvanized housing for stable and durable working life

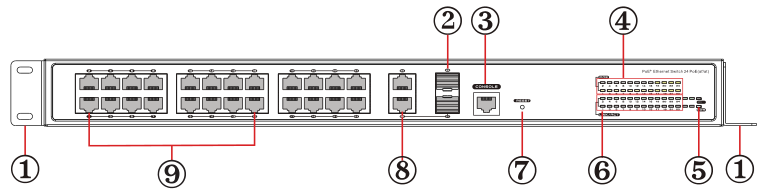

Front & Rear Panel

1 Rack-mounting ears: Cabinets for product installation or Wall installation

2 Uplink SFP port: Transfers the data from LAN port to NVR or other switch

3 Console Port: Switch CLI Configuration Interface

4 PoE LED: Yellow. Light on when PD is normal powered, OFF: PD device is not detected or powered

5 Power LED: Red, Light ON: Normal power supply, Light OFF : No power

6 Switch port LED: Green, Lights when the port is connected, Flashes when is transferring data, OFF: No link

7 RESET Button: Reset the device

8 Uplink GE port: Transfers the data from LAN port to NVR or other switch

9 PoE supply and data transferred port: Supplies the power to PD device and transfers the data

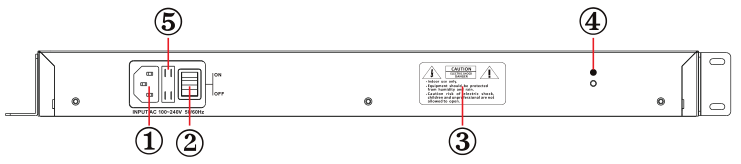

Rear Panel

1 Input: AC 100~240V

2 Power Switch: Turn on with power, Turn off no power

3 Warning contents

4 Ground Connection

5 Fuse: Max 10A

RJ 45 Define
How to make a network cable
To create a network cable, you will first need the equipment listed below.

1. Cat5e, Cat6, or Cat7 cable

2. RJ-45 connectors

3. Crimping tool

4. Wire stripper or Knife

The wire sequence of RJ45 connector must comply with international standard of EIA/TIA 568A or EIA/TIA 568B.

1) We recommend stripping at least half an inch of the cable to expose the inner wires.

2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.

3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.

4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.

5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.

6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.

7) Make sure to test the cables before installing them once both ends of the cable have been completed.

Note:

All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.

Quick Setup Guide

Package Contents

1) FS-S2024EP-2C: 1pc           2) AC power cord: 1pc

3) Screw: 10pcs                     4) Manual: 1pc

5) Mounting-ears: 2pcs           6) Rubber feet: 4pcs


Step 1: Begin with all input/output devices turned off and power cables are removed.

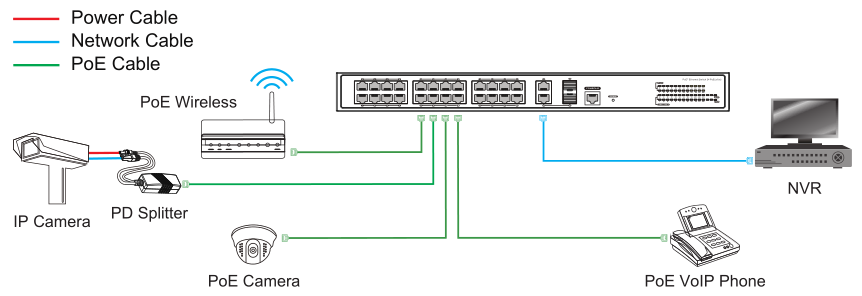

Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.

Step 3: Connect Uplink port of PoE switches with RJ-45 port of NVR or computer or other devices over standard Cat 5e/6 cables.

Step 4: Input AC power cord into power socket of PoE switches.

Step 5: Make sure above connection is properly finished, then turn on the power.

Technical Specifications

Model

FS-S2024EP-2C

Product Name

24-Port 10/100Mbps IEEE 802.3af/at Web Smart Managed PoE Switch (End-Span PSE)

Power Supply

Power Supply Mode

Built-in Power Supply

Voltage Range

AC100V~240V

Power Consumption

The device <15W     PoE power supply < 300W

 Network Port Parameter

Network Port

1~24 Ethernet Port: 10/100Mbps   2 Combo Uplink Port: 10/100/1000Mbps RJ-45 or 1000Base-X optical fiber SFP port

Transmission Distance

Downlink port: 100m     Uplink port: 100m

The transmission distance of optical fiber port depends on the different SFP modules

Transmission Medium

Downlink Port: Cat5e/6 standard cable    Uplink Port: Cat5e/6 standard cable and optical fiber

PoE Standards

IEEE802.3af/at

PoE Power Supply Mode

End-span method

PoE Power Supply Wattage

Each port 30W   Whole device 300W

Network Switch Specification

Network Standards

IEEE802.3, IEEE802.3ab, IEEE802.3u,IEEE802.3az, IEEE802.3ad

Swap Mode

Store-and- forward

Data-Caching Mechanism

4M

MAC Address List

16K

Backplane Bandwidth

8.8Gbps

Forwarding Capacity

6.54Mpps

Indicator/Button

Power Indicator

Red LED on: power on

PoE System Indicator

1 indicator light(green), Flashing frequency: 1s, Steadily on indicates abnormal operation

 Uplink RJ-45 Port Indicator

Green LED on: link up, off: link down, blinks: data transferring

PoE Indicator

24 PoE indicators (Yellow), On indicated PoE power normally, off indicates on power

PoE Network Port Indicator

1~24 port(green light), keeps on when well connected; Blinking while data transferring

Reset Indicator

Green light on when press reset button

Reset Button

Whole machine will restart while press the button

Protection Level

Surge Protection

6KV(common mode),10/700us IEC61000-4-5   2KV(differential mode),10/700us IEC610000-4-5

Electrostatic Protection

Contact Discharge: ±4KV   Air Discharge: ±6KV   Standard: IEC61000-4-2

Reliability

Mean time between failures (MTBF)

50000h

Mechanical

Dimensions (L*W*H)

440mmx297mmx44.5mm

Housing

Galvanized

Body Color

Black

Net Weight

4.5kg

Environmental



Operating Temperature

0~55

Storage Temperature

-40~70

Relative Humidity

0~95% (non-condensing)


Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
