FS-PD1001-EN10

PD Splitter

Overview | Parameters | Technical Specifications | Applications

Model: FS-PD1001-EN10

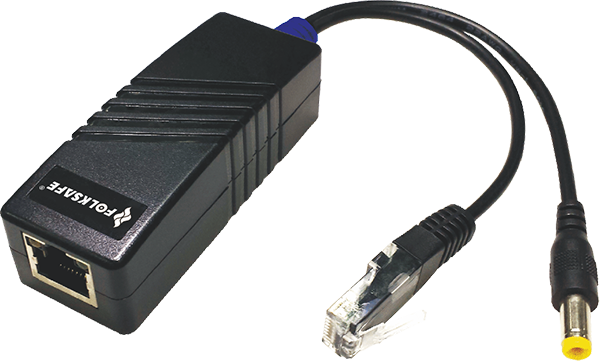

Single channel non-isolated PoE Splitter

Bandwidth: 10/100M
Input Voltage: 37-57V
Input port: Supports Mid-Span (No.4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections.
Output Voltage: 12V
Output current: 1.08A (Max)
Standard: Supports IEEE802.3af
Protection function: Overheating protection, Short circuit protection, overvoltage and overload protection
