Video & Power receiver hub

Model: FS-HD4616VPS36

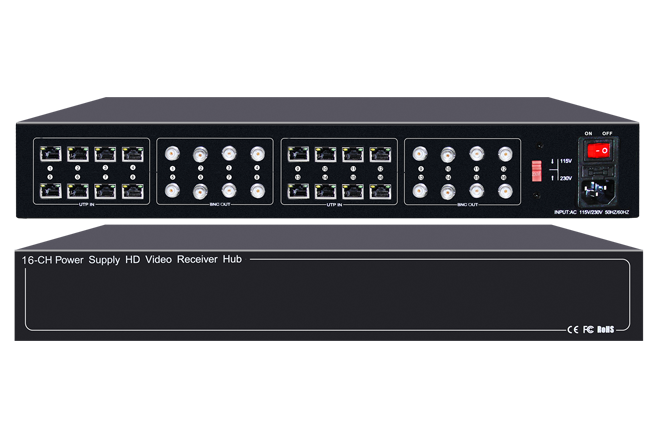

16-CH 36VDC Power Supply HD Video Receiver Hub


  • Real-time transmission over UTP cat5e/6
  • Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
  • Provides camera power while receiving video signal
  • Please refer to “Video Transmission Distance Chart” Part to find out
  • distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
  • Power up to 305m(1000ft) with FS-HD4301VPCT for 12VDC HD camera
  • Female BNC connector and RJ45 Jack
  • Full Channel Support UTC (Up to Coaxial Control) with high quality image
  • Centralized power supply, reducing the use of engineering cables
  • Exceptional interference rejection
  • Built-in solid state TVS for surge protection & ground loop isolation
  • Wave Filter Design, Anti-Static Design
  • Lightning protection design Grade: Ⅲ
  • Black galvanized housing
  • Rack, wall mountable and desk installation with 4 rubber feet
