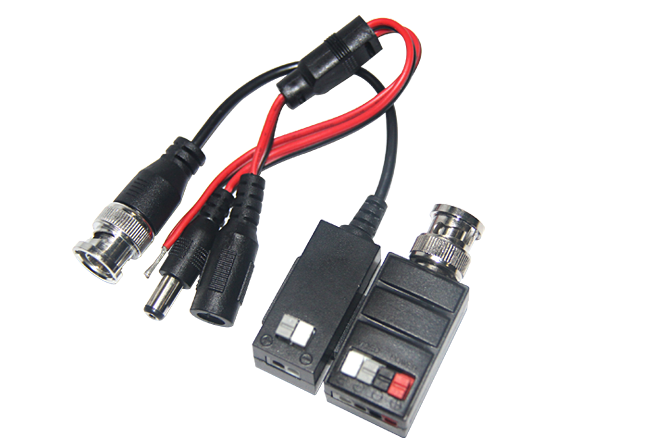

FS-HDAP4501

HD Active Video Balun

Overview | Parameters | Technical Specifications | Applications

Model: FS-HDAP4501

Single Channel Active Video Transmitter & Passive Video Receiver

Compatible with HD-TVI, CVI, AHD & CVBS analog cameras
•Male BNC connector
•Push-pin terminal connection
2-pins for UTP cat 5e/6 (Video: white: - gray: +)
2-pins for power cable (Power: black:- red: +)
•Power Supply: 12VDC input <10mA
•Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
•Wave Filter Design, Anti-Static Design
•Lightning protection design Grade: III
•60dB crosstalk and noise immunity
Exceptional interference rejection
ABS engineering plastic housing
