Video, Power, Audio & Data Balun

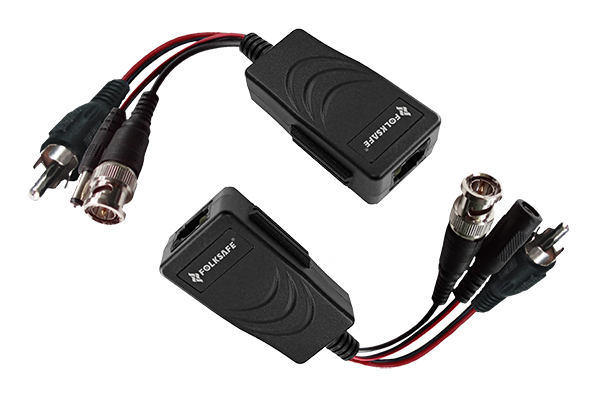

Model: FS-HD4301VPA

Single Channel HD Video, Power & Audio Transmitter & Receiver (12V/24V DC/AC)


  • Real-time transmission over UTP cat5e/6
  • No power required
  • Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
  • Please refer to “Transmission Distance Chart” Part to find out
  • distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
  • Audio distance is up to 984ft(300m) via UTP cat5e/6
  • Male BNC connector with extended mini-coax pigtail
  • RJ-45 Jack for UTP cable
  • Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
  • Wave Filter Design, Anti-Static Design
  • Lightning protection design Grade: Ⅲ
  • 60 dB crosstalk and noise immunity
  • Exceptional interference rejection
  • ABS engineering plastic housing
