Managed Industrial Managed PoE switch

Model: FS-S5008GP-4SG

8-Port 10/100/1000Mbps IEEE 802.3af/at Industrial Managed PoE Switch (End-Span PSE)


  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • Support WEB, TELNET & SNMP management
  • Support L2 switching function, including 802.1QVLAN, port mirroring IGMP Snooping function, PoE+ management
  • Support STP (802.1D) and RSTP (802.1w)
  • Support ERPS, recovery time less than 20ms
  • 8-Port support 48V-56VDC power to PoE powered devices
  • Provide 15.4W or 30W power to powered devices
  • Extra 4 1000Base-X UPLINK SFP ports
  • PoE data & power transmission distance up to 100 meters
  • Port based VLAN for Enhancing Security
  • Excellent anti-thunder, anti-static and anti-interference abilities
  • Surge Protection: 6KV
  • Restart function helps master IC reset wholly
  • Easy and convenient to use, plug & play, no need to configure
  • Galvanized housing for stable and durable working life

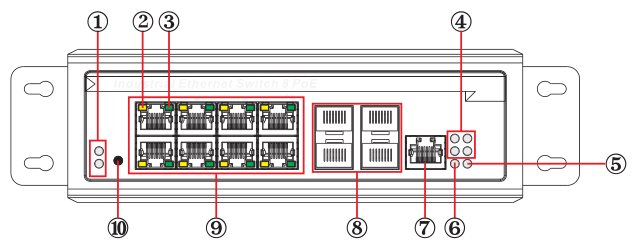

Front & Rear Panel

1 Power Indicator: Red        Light on: with power           Light off: no power

2 PoE LED: Yellow        Light on: when device is powered     Light off: when device is not detected or powered

3 Link/ Act Indicator: Green    Light on: link up     off: link down    blinks: data transferring

4 Fiber Uplink Indicator: Green    Light on: link up    off: link down    blinks: data transferring

5 System LED: Flashes when deceive is running

6 Alarm LED: Light on when one of the input power or PoE downlink ports is off

7 Console Port: Switch CLI Configuration Interface

8 Uplink SFP Port: transferring data to remote devices

9 PoE supply and data transferred port: Supplies the power to PD device and transfers the data

10 Reset Button: Press the reset button to RESTART the device

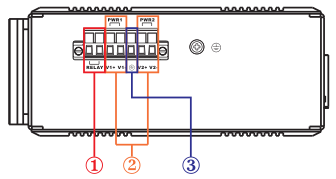

Side Panel

1 Relay Alarm connection

2 Power Input: DC 48~56V

3 Ground Connection

Rear Panel

1 Rack-mounting ears: Used to wall mount installation

2 DIN-rail: Used to DIN-rail installation

RJ 45 Define
How to make a network cable
To create a network cable, you will first need the equipment listed below.

1. Cat5e, Cat6, or Cat7 cable

2. RJ-45 connectors

3. Crimping tool

4. Wire stripper or Knife

The wire sequence of RJ45 connector must comply with international standard of EIA/TIA 568A or EIA/TIA 568B.

1) We recommend stripping at least half an inch of the cable to expose the inner wires.

2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.

3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.

4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.

5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.

6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.

7) Make sure to test the cables before installing them once both ends of the cable have been completed.

Note:

1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.

2. Up to two units can be cascaded.

Quick Setup Guide

Package Contents

1) FS-S5008GP-4SG: 1pc            2) 53VDC/2.5A Power adapter: 1pc

3) Screws: 10pcs                       4) DIN rail: 1pc

5) Mounting-ears: 2pcs              6) Manual: 1pc


Step 1: Begin with all input/output devices turned off and power cables are removed.

Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.

Step 3: Connect Uplink port of PoE switches with RJ-45 port of NVR or computer or other devices over standard Cat 5e/6 cables.

Step 4: Connect 53VDC/2.5A power adaptor with PoE switches.

Step 5: Make sure above connection is properly finished, then turn on the power.

Technical Specifications

Model

FS-S5008GP-4SG

Product Name

8-Port 10/100/1000Mbps IEEE 802.3af/at Industrial Managed PoE Switch (End-span PSE)

Power Supply

Power Supply Mode

Power Adaptor

Voltage Range

DC48~56V

Power Consumption

The device <10W     PoE power supply 120W

Network Port Parameter

Network Port

1~8 Ethernet Port: 10/100/1000Mbps   Extra 4-Port 1000Base-X UPLINK SFP ports

Transmission Distance

Downlink port: 100m   Uplink port: The transmission distance of optical ber port depends on the different SFP modules

Transmission Medium

Downlink Port: Cat5e/6 standard cable   Uplink Port: optical ber

PoE Standards

IEEE802.3af/at

PoE Power Supply Mode

End-span method

PoE Power Supply Wattage

Each port 30W   Whole device120W

Network Switch Specification

Network Standards

IEEE802.3, IEEE802.3ab, IEEE802.3u, IEEE802.3az, IEEE802.3ad

Swap Mode

Store-and- forward

Data-Caching Mechanism

4M

MAC Address List

8K

Forwarding Capacity

17.85Mpps

Indicator/Button

Power Indicator

Red LED on: power on

PoE System Indicator

1 indicator light(green), Flashing frequency: 1s, Steady on indicates abnormal operation

Uplink SFP Port Indicator

Green LED on: link up, off: link down, blinks: data transfer

PoE Indicator

8 PoE indicator light (yellow), on: indicating PoE powers normally, off: indicating no power

PoE Network Port Indicator

1-8 port (green light), keeps on when well connected; glinting while data transfer

Reset Button

Whole machine will restart while press the button

Protection Level

Surge Protection

6KV (common mode),10/700us IEC61000-4-5   2KV (differential mode),10/700us IEC610000-4-5

Electrostatic Protection

Contact Discharge: ±8KV   Air Discharge: ±15KV   Standard: IEC61000-4-2

Reliability

Mean time between failures (MTBF)

100000h

Mechanical

Dimensions (L*W*H)

184mmx143mmx62mm

Housing

Galvanized

Body Color

Black

Net Weight

750g

Environmental

Operating Temperature

-40~75

Storage Temperature

-40~85

Relative Humidity

0~95% (non-condensing)

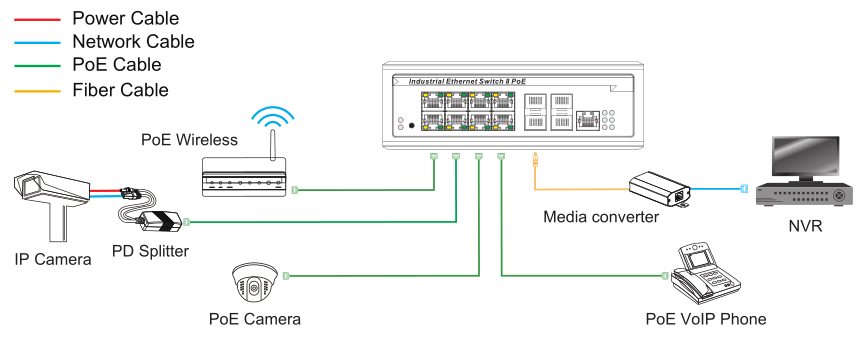

Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
